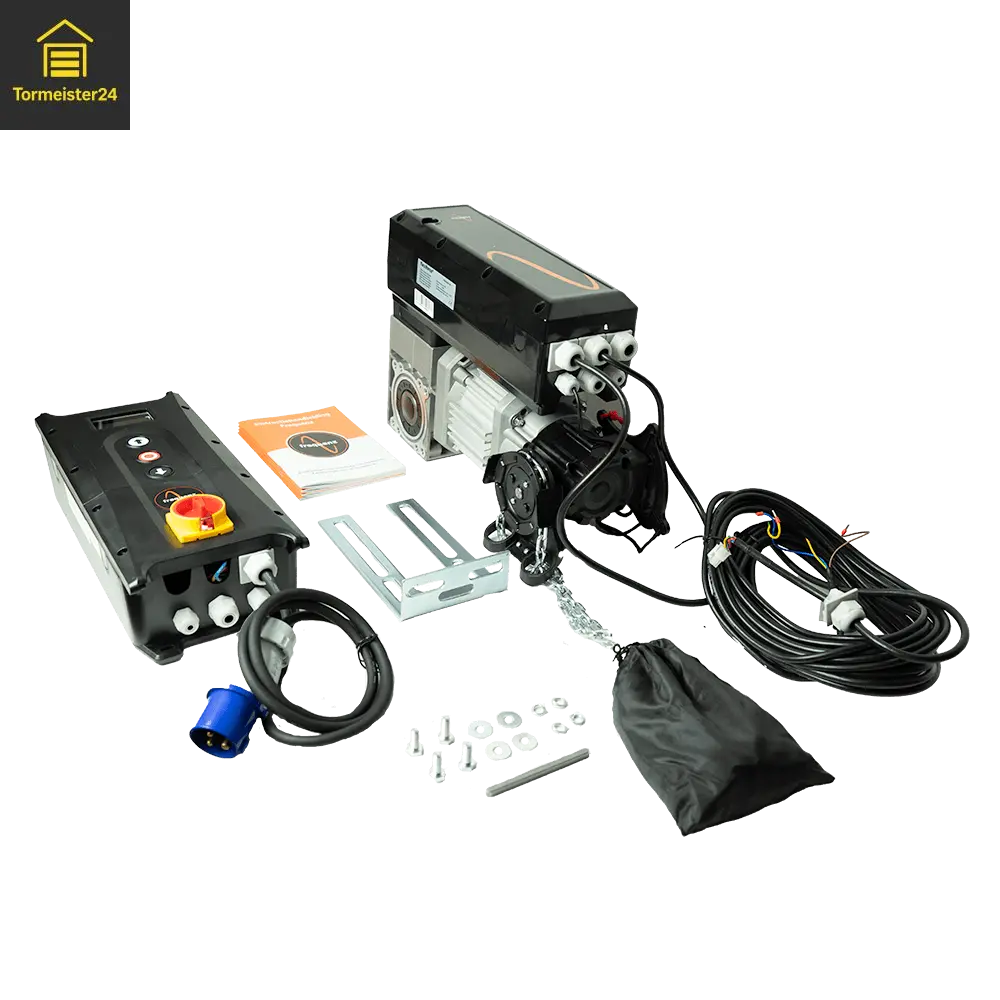

Frequency converter door operator FU28 – 100 Nm, 230 V, for 25.4 mm shaft, with hand chain

Frequency converter door operator FU28: The optimal solution for your needs

Industrial drive FU28 – 100 Nm, 230 V, frequency converter, variable speed (Art. No. 19010001)
The FU28 industrial operator with integrated frequency converter is the ideal solution for medium-sized industrial doors up to approximately 28 m² in size. It offers full control over opening and closing speeds and maximum ease of use thanks to intuitive controls.

Technical data

• Torque: 100 Nm

• Supply voltage: 230 V (1 phase)

• Speed: variable via frequency converter

• Soft start / soft stop (individually adjustable)

• Shaft mount: 25.4 mm (1 inch)

• For gate areas up to approx. 28 m²

• Emergency operation: manual hand chain (no spring break device required)

Control & Functions

• LCD control unit with backlight

• Text-guided menu navigation in 4 languages ​​(no code entry required)

• Digital limit switches (electronic)

• Connection options for 2 safety devices (e.g. light barriers)

• Additional inputs for buttons and remote control

• 3 freely programmable relays (e.g. for traffic lights or signal generators)

• Output: 24 V / 750 mA DC for external devices

• Cable length: 7 m

Optional accessories

• Plug-in radio receiver 868 MHz (3-channel)

• 4- or 15-channel handheld transmitter (868 MHz)

• Connection cable set 11 m between motor and control

Advantages

• Smooth, material-friendly starting and stopping

• Optimum safety through electronically controlled force measurement

• Easy operation thanks to text-based menu navigation

• Ideal for roller doors, sectional doors and large industrial doors

High performance with low power consumption

The FU28 frequency inverter door operator is a powerful motor specifically designed for applications in sectional door operators. With a torque capacity of 100 Nm, it can move even heavy loads effortlessly. But it's not just power that counts; this operator also consumes only 230 V, making it an energy-efficient choice.

Versatile applications

Whether you need a garage door opener or an industrial door opener, the FU28 is suitable for almost any scenario. Its 25.4 mm thick shaft ensures the motor remains stable, even under heavy loads. This way, you can be sure that your door will always open and close on time, because the opener is trouble-free.

Easy installation thanks to integrated hand chain

Installation of the FU28 frequency converter door operator is particularly easy thanks to the integrated hand chain. You don't have to worry about sourcing additional tools because everything is included in the package. The hand chain also saves you valuable time when it comes to manually operating the operator in the event of an electrical failure.
