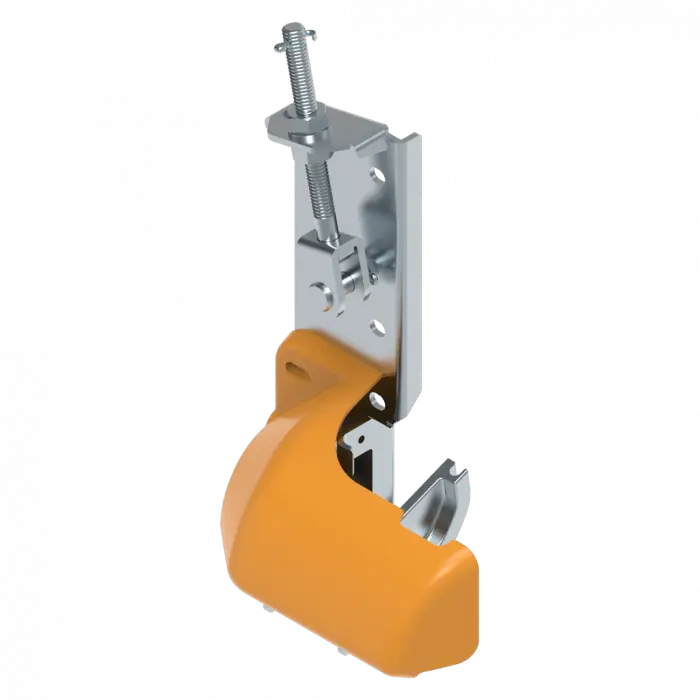

Rope break protection 450 kg | Adjustable | Right | Industrial gate
The adjustable 450 kg cable break safety device (right) is a heavy-duty safety component for industrial sectional doors. Designed for 5 mm steel cables, it is engineered for maximum reliability and immediate locking in the event of cable breakage.
🔧 Technical specifications
3173
Industry (ERA-IND)
Right

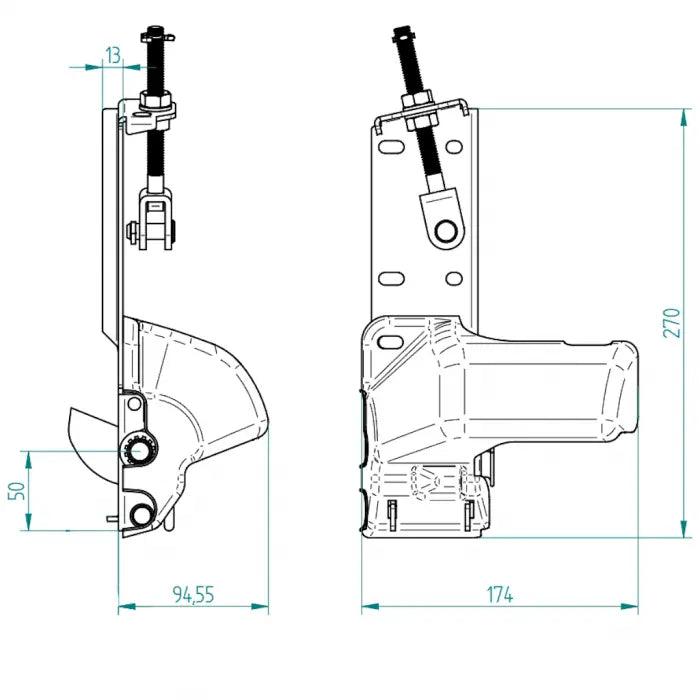

174 mm
270 mm
Steel, industrial grade
450 kg
5 mm
Blocking of the gate leaf in case of rope breakage
1.33 kg
1 piece
💪 Features & Benefits
- Industrial, adjustable rope break safety device for maximum precision.
- Immediate mechanical blocking in case of rope breakage → maximum safety.
- Designed for 5 mm steel cables – standardized industrial dimension.
- Load capacity up to 450 kg for heavy sectional doors.
- Right-hand version → optimal fit for the right side of the goal.
- Extremely robust steel construction, durable & low maintenance.
- Designed to industry standards for high cycle loads.
- Ideal for repair, modernization & safety-oriented maintenance.
⚙️ Application & Assembly
The cable break safety device is installed at the bottom of the gate and stops the gate leaf immediately in the event of a cable failure. It prevents serious damage and reliably protects personnel and equipment.
Rope break safety devices are safety-critical components. Installation and adjustment must only be carried out by qualified technicians. Incorrect installation can be life-threatening.
🧰 Practical example
In a production hall, a sectional door exhibited uneven cable tension. After replacing the old safety device with the adjustable 450 kg right-hand cable break safety device , the door's operation stabilized, and the safety inspection was passed without any issues.
🔗 Relevant categories & accessories
❓ FAQ
Is the fuse adjustable?
Yes – the trigger mechanism can be precisely adjusted.
Which goals is it suitable for?
For industrial sectional doors up to 450 kg and 5 mm cables.
Is there a left-hand version?
Yes – under article number 3172.
Am I allowed to install them myself?
No. A qualified technician is required due to high safety relevance.
🛒 Order the 450 kg right-hand rope break safety device now
The adjustable 450 kg rope break safety device – right – offers maximum safety and reliability for industrial sectional doors.
