Hydraulic unit Loading Systems 232 HDA – folding lip 1 V, 1.5 kW
Hydraulic unit Loading Systems 232 HDA – folding lip 1 V, 1.5 kW is backordered and will ship as soon as it is back in stock.
Description
Description

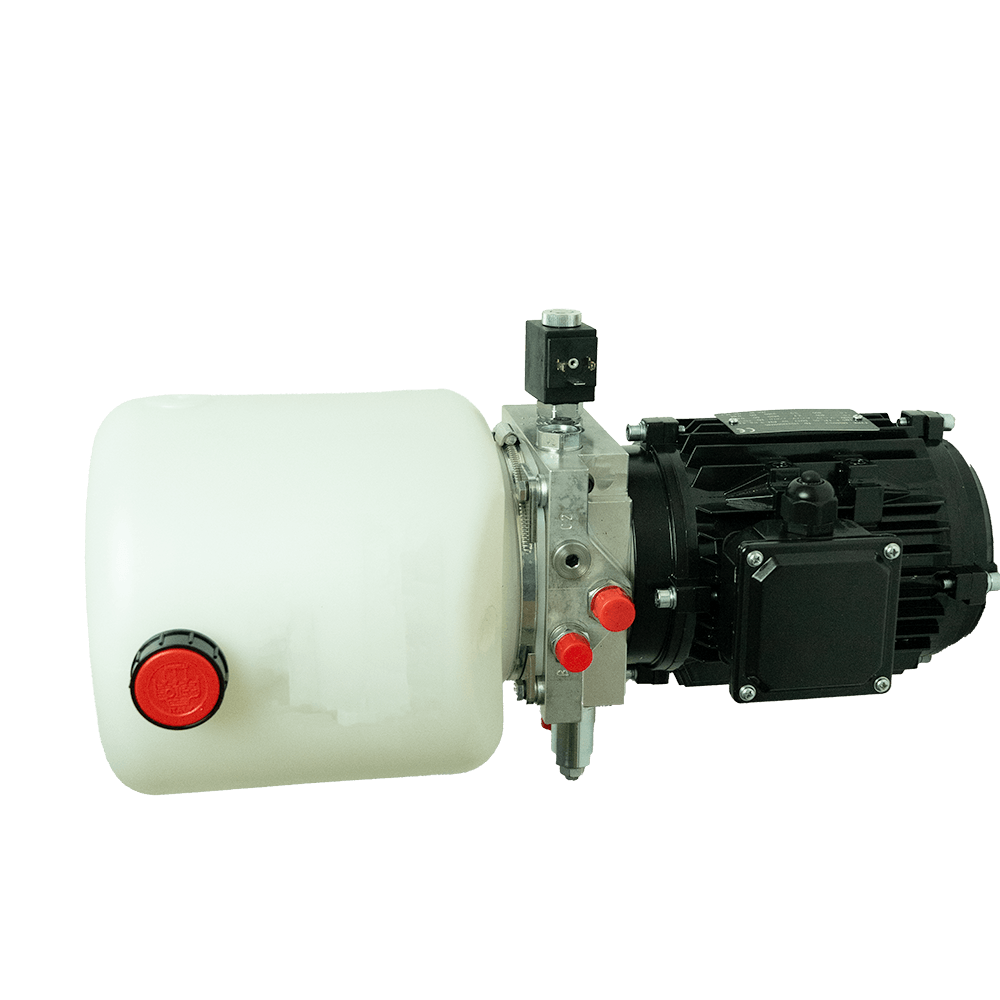

Hydraulic unit for Loading Systems 232 HDA – Folding lip 1 V
High-performance hydraulic power unit for Loading Systems folding lip ramps type 232 HDA. Directly mountable, robustly designed and ideal as a reliable alternative to the original unit.
Product overview
This hydraulic power unit was specifically designed for Loading Systems flap lips with a single valve (type 232 HDA). The linear 5-liter oil tank, the extra-powerful 1.5 kW motor, and the direct hose compatibility allow for quick replacement without adapters.
Technical data
201001039
Folding lip 1 V
Loading Systems 232 HDA
1.5 kW (3-phase)
230 / 400 V – 50 Hz
4.5 L/min
24 V DC / 18 W
5 L plastic, linearly mounted
508 × 258 × 201 mm
13.5 kg
Piece
Loading Systems
Advantages
- Perfectly suited for Loading Systems hinged lips type 232 HDA
- Extra powerful 1.5 kW motor for high operational reliability
- Can be mounted directly – no adapters or modifications required.
- Adjustable bracket for optimal positioning on the lifting table
- Affordable and reliable alternative to the original unit
- Short delivery times
Application & Assembly
The power unit is mounted directly on the folding lip ramp and reliably supplies it with hydraulic power. The standard mounting bracket allows for precise alignment and stable attachment.
Practical example
The defective original hydraulic unit of an older Loading Systems Type 232 HDA folding lip ramp was replaced. The new hydraulic unit could be installed without an adapter and immediately restored the safe operation of the ramp.
Relevant categories & accessories
FAQ – Frequently Asked Questions
For which types of ramps is the unit suitable?
For loading systems hinged lips with a type 232 HDA valve.
Is an adapter necessary for assembly?
No, the unit is designed specifically for the original hoses.
Is this an original part?
No, it is a high-quality and affordable alternative to the original unit.
Is the unit safety-relevant?
Yes, it is a key component for the safe operation of the loading facility.
Request a quote for the hydraulic power unit for Loading Systems 232 HDA now.
Perfectly fitting, powerful and economical – the optimal hydraulic unit for your folding lip ramp from Tormeister 24.
