SKU: 85295 | Barcode: 4062434007341

Marantec Special 613-2 Reflex Light Barrier | 8 m, 2-wire, IP65, 7.5 m cable

Name: Marantec Special 613-2 Reflex Light Barrier | 8 m, 2-wire, IP65, 7.5 m cable
Brand: Marantec
SKU: 85295
Price: 125.94 EUR
Availability: InStock

€125,94

Tax included Shipping calculated at checkout.

Description

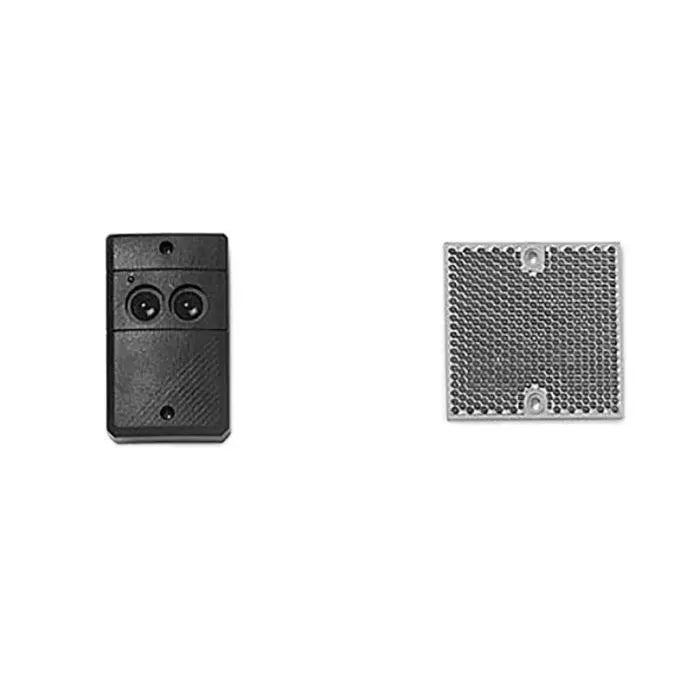

Marantec Special 613-2 Reflex Light Barrier | 8 m, 2-wire, IP65

The Marantec Special 613-2 reflective photoelectric sensor is a reliable optical safety device for gate systems. With 2-wire technology, IP65 protection, and a 7.5 m cable, it offers a robust and easy-to-install solution for industrial and garage doors.

Product overview

This reflective photoelectric sensor combines transmitter and receiver in a single housing and uses a reflector. This eliminates the need for a single cable run – ideal for installations where the opposite side of the gate is difficult to reach. The 2-wire technology ensures simple, reverse polarity-protected wiring.

Technical data

Interface:
2-wire

Reach:
8 m (min. 1 m)

Protection class:
IP65

Operating voltage:
24 V-DC

Cable length:
7.5 m

Dimensions (W x H x D):
59 × 96 × 55 mm

Installation:
Conventional, reverse polarity protected

Protective function:
Optical safety device

Scope of delivery

Light barrier (transmitter/receiver combined)
reflector
Connection cable 7,500 mm
Mounting material

Features & Benefits

2-wire technology – power supply, signal & testing via only two wires.
Reflex operation saves cable runs to the opposite side.
IP65 – ideal for indoor areas and protected outdoor areas.
7.5m cable pre-assembled for quick installation.
Robust design for industrial and residential gate systems.
Tormeister 24 recommends: safety-relevant installation should only be carried out by qualified professionals.

Application & Assembly

The reflective photoelectric sensor is mounted on the door frame or masonry. The reflector is attached to the opposite side, creating a closed optical monitoring field. Suitable for sectional doors, industrial doors, roller doors, and sliding doors with a 2-wire control input.

Safety notice:
Light barriers are safety-relevant components. Installation must always be carried out with the power off and only by trained technicians.

Practical example

In a gate system with limited space, the Special 613-2 could be installed thanks to its reflex operation, without having to lay a cable across the hall. This saves installation time and reduces potential sources of error.

Relevant categories & accessories

Frequently Asked Questions (FAQ)

Which controllers are compatible?

All controllers with connection for 2-wire light barriers.

Can the light barrier be mounted outdoors?

Yes, IP65 protects against dust and water jets – but not for extremely unprotected outdoor areas.

What is the advantage of the reflex technique?

Only one device requires electricity – on the opposite side, a reflector is sufficient.

How far can the barrier be set?

Maximum range 8 m, minimum distance 1 m.

Inquire now about the Marantec Special 613-2

Tormeister 24 supports you in selecting, installing and optimizing your gate security components.
