SKU: 86424 | Barcode: 4062434000397

Marantec Special 630 One-Way Light Barrier | 1 mm Door Frame | 8 m | 2-Wire | IP54 | incl. 2 x 10 m Cables

€82,10

Tax included Shipping calculated at checkout.

Description

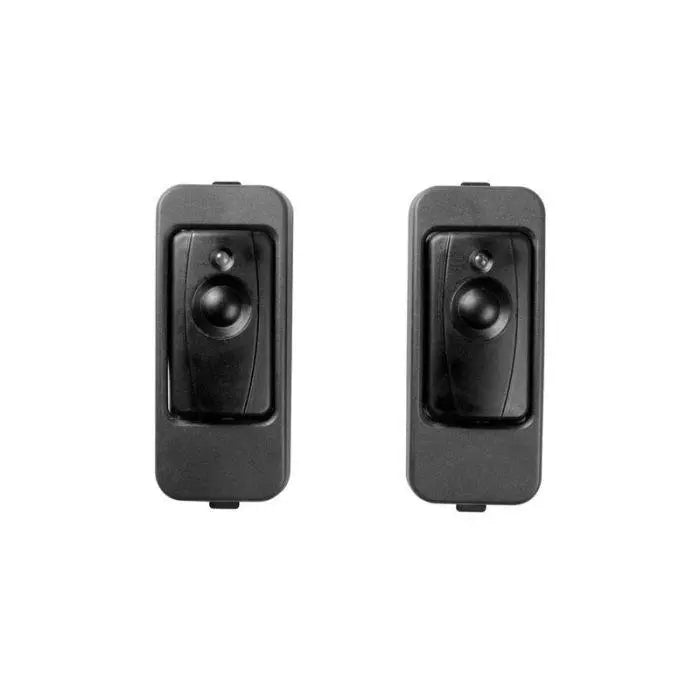

Marantec Special 630 One-Way Light Barrier for Gate Frames | 1 mm | 8 m | 2-Wire

The Marantec Special 630 is a compact one-way photocell for gate frames with a sheet thickness of 1 mm. With an 8 m range, 2-wire technology and IP54 protection, it offers maximum safety and easy integration into modern gate control systems.

Product overview

This photoelectric sensor can be clipped directly into corresponding openings in the door frame thanks to its special 1 mm holder. The 2-wire technology allows power supply, signal, and testing via just two reverse polarity protected wires – ideal for controllers with a 2-wire input. Perfectly suited for industrial, hall, and garage doors.

Technical data

Model:
Marantec Special 630

Reach:
8 m (min./max. 1–8 m)

Interface:
2-wire technology

Operating voltage:
24 V DC

Protection class:
IP54

Dimensions (W x H x D):
35 × 85 × 19 mm

Holder:
Suitable for 1 mm gate frames

Assembly:
Suitable for CH-51N & CH-101N pedestal columns

Signaling:
LED for function & pollution

Unit:
Transmitter + receiver + cable set

Scope of delivery

Light barrier transmitter
Light barrier receiver
2 holders for 1 mm sheet thickness
2 connection cables, each 10 m long
4 cable connectors
Mounting material

Features & Benefits

2-wire technology: Power supply, signal & test via only two wires.
Clip-in design for door frames with 1 mm sheet thickness – perfect for new construction and retrofitting.
LED indicators for function and contamination.
Optical safety device for protection against personal injury and property damage.
Compact dimensions for tight installation spaces.
Suitable for CH-51N & CH-101N pedestal columns.
Tormeister 24 recommends professional installation for maximum safety.

Application & Assembly

The Marantec Special 630 photocell is specifically designed for 1 mm door frames and can be installed quickly thanks to its clip-in system. The 2-wire technology significantly reduces installation effort and is ideal for door control systems that support this connection standard.

Safety note: Installation should only be carried out when the power is off. Light barriers are safety-relevant and should only be installed by trained professionals.

Practical example

During the modernization of an industrial door, the photocell was integrated directly into the 1 mm door frame. The 2-wire technology enabled quick installation, and the LED signals have since facilitated diagnostics and maintenance.

Relevant categories & accessories

Frequently Asked Questions (FAQ)

For which gate frames is this light barrier suitable?

For gate frames with 1 mm sheet thickness and support columns CH-51N & CH-101N.

Can the light barrier be used outdoors?

With an IP54 rating, it is suitable for indoor and protected outdoor areas.

How is the connection made?

Using 2-wire technology – power supply, signal & test via only two wires.

Marantec Special 630 1 mm light barrier - inquire now

The perfect solution for modern gate systems – safe, compact and easy to install.
