SKU: 90457 | Barcode: 4062434000496

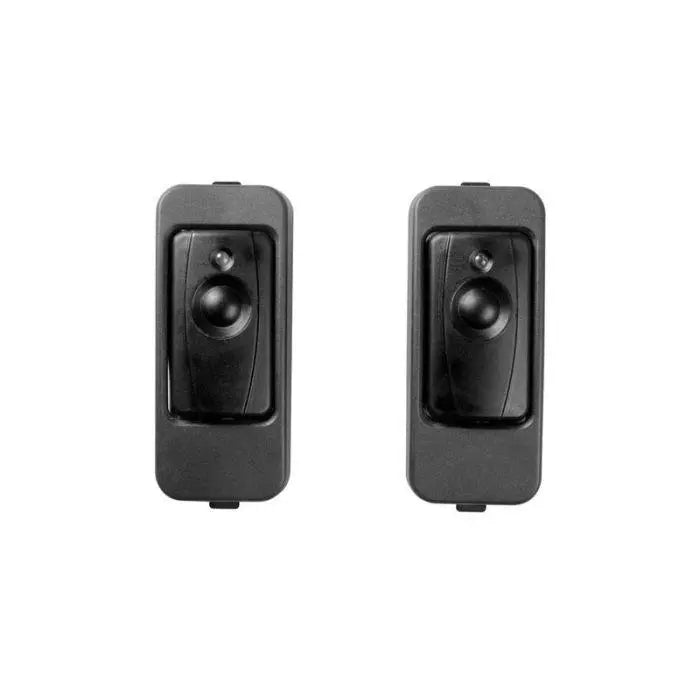

One-way photoelectric sensor for gate frames | 8 m range | 2-wire | IP54 | incl. 2 x 10 m cables

Name: One-way photoelectric sensor for gate frames | 8 m range | 2-wire | IP54 | incl. 2 x 10 m cables
Brand: Marantec
SKU: 90457
Price: 82.1 EUR
Availability: InStock

€82,10

Tax included Shipping calculated at checkout.

Description

One-way light barrier for gate frames | 8 m | 2-wire | IP54

This one-way photoelectric sensor was specifically designed for gate frames with a 2 mm sheet thickness. It offers an 8 m detection range, 2-wire technology, LED signaling, and is ideal for gate controllers with a 2-wire photoelectric sensor input.

Product overview

The photocell is perfectly suited for garage, hall, and industrial doors. Thanks to its clip-in system, it can be mounted directly into suitable cutouts in the door frame or support posts (CH-51N / CH-101N). With an IP54 rating, it is reliably protected against dust and splashing water.

Technical data

Reach:
8 m (min./max. 1–8 m)

Interface:
2-wire system (signal, power supply & test via 2 wires)

Operating voltage:
24 V DC

Protection class:
IP54

Signaling:
LED: Function and contamination indicator

Mounting type:
Clip-in type for 2mm door frames & suitable for CH-51N / CH-101N

Dimensions (W x H x D):
35 × 85 × 19 mm

Cable:
2 × 10 m connection cables

Unit:
Transmitter + Receiver Set

Scope of delivery

Light barrier transmitter
Light barrier receiver
2 holders for 2 mm sheet thickness
2 connection cables, each 10 m long
4 cable connectors
Mounting material

Features & Benefits

LED indicators for function and contamination.
2-wire technology – minimal cabling effort.
Clip-in design for door frames, perfect for retrofitting and new construction.
Suitable for CH-51N & CH-101N pedestal columns.
Safety-relevant optical protection function against personal injury and property damage.
Ideal for gate controls with 2-wire photocell input.
Tormeister 24 recommends professional installation for maximum safety.

Application & Assembly

This one-way photoelectric sensor is designed for side mounting in door frames. Thanks to its 2-wire system, power, signal, and testing are all handled via just two reverse-polarity protected wires. The integrated LED simplifies maintenance and troubleshooting. With an IP54 rating, this photoelectric sensor is ideally suited for indoor and sheltered outdoor areas.

Safety note: As this is a safety-relevant device, installation must only be carried out when the power is off. For optimal performance, Tormeister 24 recommends a qualified professional.

Practical example

In an underground parking garage, the light barrier was integrated directly into the door frame. Thanks to the 2-wire technology, the existing control system could be expanded without significant effort. The LED indicators have since greatly simplified maintenance.

Relevant categories & accessories

Frequently Asked Questions (FAQ)

For which applications is the light barrier suitable?

Ideal for sectional doors, industrial doors, underground garages and door frames with 2 mm sheet thickness.

Can the light barrier be used outdoors?

IP54 allows for protected outdoor areas, but not permanent direct exposure to the elements.

Does the light barrier require additional wiring?

No – 2-wire technology handles power supply, signal & testing via only two wires.

Request a quote for a one-way light barrier for gate frames now

Safe, flexible and easy to install – perfect for gate systems with 2-wire technology.
