Marantec Special 633 One-Way Light Barrier | 8 m | 2-Wire | IP65 | incl. 20 m Underground Cable

Name: Marantec Special 633 One-Way Light Barrier | 8 m | 2-Wire | IP65 | incl. 20 m Underground Cable
Brand: Marantec
SKU: 96984
Price: 96.44 EUR
Availability: InStock

€96,44

Tax included Shipping calculated at checkout.

Description

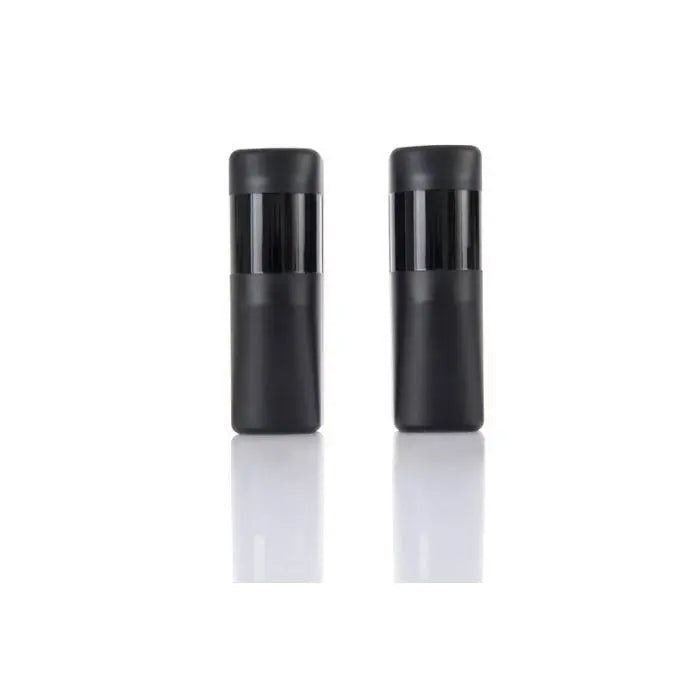

Marantec Special 633 One-Way Light Barrier | 8 m | 2-Wire | IP65

The Marantec Special 633 is a compact one-way photoelectric sensor with an 8 m range, 2-wire technology, IP65 protection, and ±90° rotatable optics. Includes a 20 m underground cable – ideal for professional installations on gate systems.

Product overview

Thanks to the 2-wire technology, power supply, signal, and test are transmitted via just two wires – perfect for gate controllers with a 2-wire photocell input. The ±90° rotatable optics allow for flexible alignment, even in challenging installation situations.

Technical data

Model:
Marantec Special 633

Reach:
8 m (min./max.: 1–8 m)

Rotation:
±90° horizontal, 180° orientation

Interface:
2-wire technology

Operating voltage:
24 V DC

Protection class:
IP65 (dustproof and protected against water jets)

LED signals:
Function and contamination indicator

Dimensions (W x H x D):
38 × 110 × 38 mm

Cable:
20 m underground cable, 2×0.8 mm²

Unit:
Transmitter + receiver + housing + cable

Scope of delivery

Light barrier transmitter
Light barrier receiver
2 cases
20 m underground cable (2×0.8 mm²)
Mounting material

Features & Benefits

8 m range – ideal for garage, hall and sliding doors.
2-wire technology for minimal installation effort.
±90° rotatable optics for perfect alignment.
IP65 – robust, dustproof and protected against water jets.
LED indicators for function and contamination.
Optical safety device for protection against personal injury and property damage.
Includes 20m underground cable – ideal for long distances.
Tormeister 24 recommends installation by qualified personnel.

Application & Assembly

The Special 633 is suitable for gate systems with a 2-wire photocell input and can be flexibly aligned thanks to its rotatable optics. The included 20-meter underground cable also allows for installations over longer distances – ideal for industrial and outdoor gate systems.

Safety note: Installation only when de-energized. Light barriers are safety-relevant and must be installed according to applicable standards.

Practical example

In an outdoor installation with a wide access road, the Special 633 was installed using a 20-meter underground cable. The long cable length allowed for perfectly positioned mounting – since then, the light barrier has operated reliably in all weather conditions.

Relevant categories & accessories

Frequently Asked Questions (FAQ)

How far does the Special 633 have a range?

It reliably detects objects at distances of up to 8 meters.

Can it be used outdoors?

Yes – thanks to IP65 protection, it is absolutely weatherproof.

What is the advantage of 2-wire technology?

Power supply, signal & test run over only two wires – minimal effort.

Inquire now about the Marantec Special 633 with 20m underground cable

The compact, robust and easy-to-install solution for modern gate systems – safe, flexible and durable.
