SKU: 101188 | Barcode: 4062434001141

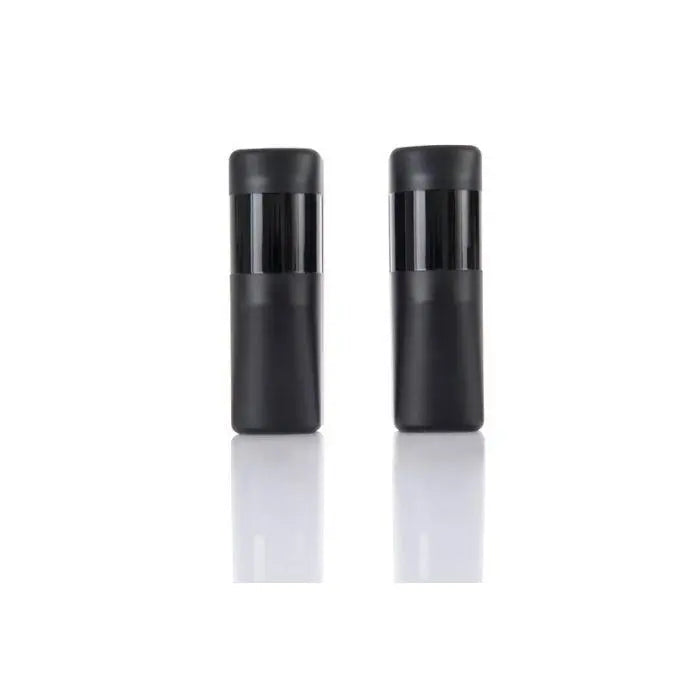

Marantec Special 633 L One-Way Light Barrier | 20 m | 2-Wire | IP65 | ±90° Rotatable

Name: Marantec Special 633 L One-Way Light Barrier | 20 m | 2-Wire | IP65 | ±90° Rotatable
Brand: Marantec
SKU: 101188
Price: 95.85 EUR
Availability: InStock

€95,85

Tax included Shipping calculated at checkout.

Description

Marantec Special 633 L One-Way Light Barrier | 20 m | 2-Wire | IP65

The Marantec Special 633 L is a high-performance one-way photoelectric sensor with a 20 m range, 2-wire technology, and IP65 protection. Ideal for demanding gate systems in industrial, commercial, and residential areas.

Product overview

Thanks to its ±90° rotatable orientation and robust IP65 housing, the Special 633 L is suitable for outdoor installations and wide access routes. The 2-wire technology enables power supply, signal, and test transmission via just two wires – perfect for controllers with a 2-wire photoelectric sensor input.

Technical data

Model:
Marantec Special 633 L

Reach:
20 m (min./max. 6–20 m)

Rotation:
±90° (horizontal orientation 180°)

Interface:
2-wire technology

Operating voltage:
24 V DC

Protection class:
IP65 (dustproof and protected against water jets)

LED signaling:
Function & Pollution

Dimensions (W x H x D):
38 × 110 × 38 mm

Unit:
Transmitter + receiver + housing

Scope of delivery

Light barrier transmitter
Light barrier receiver
2 weatherproof housings
Mounting material

Features & Benefits

Long range: up to 20 m – ideal for wide gates and industrial plants.
2-wire technology significantly reduces cabling effort.
±90° rotatable optics for flexible alignment.
LED status indicator for function and contamination.
IP65 – extremely robust and weatherproof.
Optical security device for the protection of people and property.
Tormeister 24 recommends installation by qualified professionals for maximum safety.

Application & Assembly

The Special 633 L is suitable for modern gate control systems that support 2-wire sensors. Its horizontal rotatability allows for optimal alignment, even in sloping or challenging installation situations. Thanks to its IP65 rating, it is ideally suited for outdoor use.

Safety note: Installation only when de-energized. Light barriers are safety-relevant and must be tested according to standards.

Practical example

The 633 L was used at a sliding gate in an industrial plant due to its long range and rotating optics. Even under severe weather conditions, the detection remained precise and reliable.

Relevant categories & accessories

Frequently Asked Questions (FAQ)

How does the Special 633 L differ from the 633 R?

The 633 L uses 2-wire technology, while the 633 R uses 4-wire technology with relay output.

Can the light barrier be used outdoors?

Yes – thanks to IP65 it is extremely weatherproof.

What is the maximum range?

Up to 20 meters – ideal for industrial and sliding gates.

Inquire now about the Marantec Special 633 L

The perfect 2-wire light barrier for large and demanding gate systems – reliable, robust and flexible.
