Marantec sliding gate drive set CBX10324F 24 V-DC bi linked - up to 500 kg, 40 cm/s

The powerful CBX10324F sliding gate operator set is ideal for heavy sliding gates weighing up to 500 kg. Thanks to its integrated radio module, precise control, and quiet mechanics, it offers maximum reliability and convenience.

🚀 Highlights:

• For sliding gates up to 500 kg
• Quiet 24 V DC motor with 23 Nm torque
• Max. running speed: 40 cm/s
• Magnetic limit switch flags
• Soft start/stop & current-dependent obstacle detection

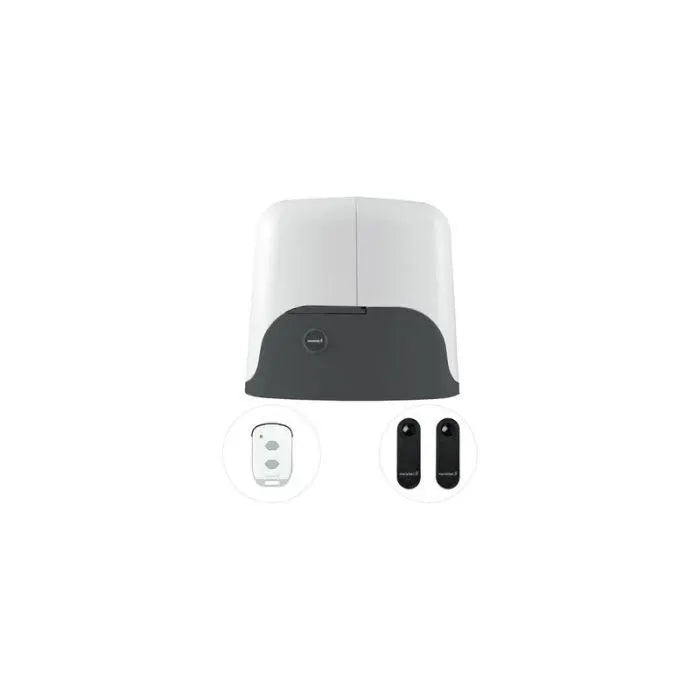

📦 Scope of delivery:

• Motor unit with CBX10324F control unit & integrated radio receiver (868 MHz bi-linked)
• 2× Digital 572 Micro handheld transmitters (2-channel, 868 MHz)
• 1× LS22 one-way photoelectric sensor (without connecting cable)
• Spur gear module 4 pre-assembled
• Floor console

⚙️ Technical data:

• Tensile force: 23 Nm
• Running speed: 40 cm/s
• Max. gate leaf weight: 500 kg
• Temperature range: -20 °C to +55 °C
• Motor power: 0.35 kW
• Dimensions (drive): 330×330×290 mm
• Dimensions (control): 130×100×100 mm

🛒 Order now at Tormeister24!

Get the highest quality and technology with the CBX10324F sliding gate operator – buy conveniently online and use immediately.
