GFA slack rope switch, right | Rope monitoring up to 240 V

Name: GFA slack rope switch, right | Rope monitoring up to 240 V
Brand: IDD-Parts
SKU: 111004006
Price: 174.9 EUR
Availability: InStock

€174,90 €186,22

Tax included Shipping calculated at checkout.

Description

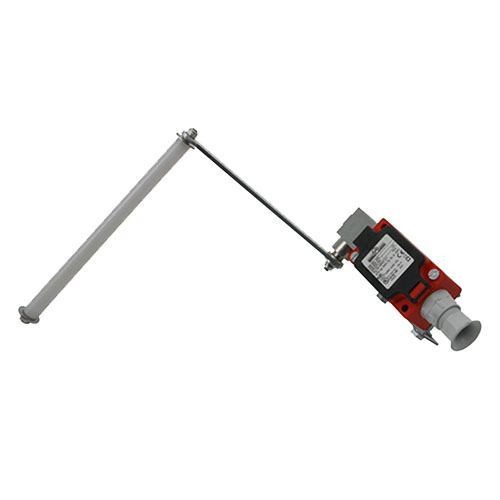

GFA slack rope switch right

Safety-relevant slack rope switch for monitoring rope tension on electrically operated gate systems. Reliably detects voltage loss and stops the drive immediately.

Product overview

The GFA slack rope switch in the right-hand version is a key safety element for industrial and sectional doors. It continuously monitors the rope tension and prevents uncontrolled door movements in the event of slack rope or rope breakage by immediately shutting off the motor.

Technical data

Article number:
111004006

Version:
Right

Maximum switching capacity:
240 V / 3 A

Product type:
Slack rope switch

Area of application:
Electrically operated gates

Weight:
0.43 kg

Unit:
Piece

Gate manufacturer:
GFA other, universal

Advantages & Safety

Reliable detection of rope tension loss
Immediate engine stop in case of slack rope or rope breakage
Increased personal and occupational safety
Protection of the gate system from consequential damage
Suitable for GFA gates and many other systems
Safety-relevant component according to professional practice

Application & Assembly

The slack rope switch is installed at the designated mounting position on the right side of the gate system. It continuously monitors the rope tension and sends a shutdown signal to the control unit in case of deviations.

Safety & Occupational Safety:
Assembly, adjustment, and testing must only be carried out by qualified personnel. Work must only be performed when the system is de-energized. A functional test is mandatory after assembly.

Practical example

In an industrial building, the GFA slack rope switch (right-hand version) was installed to minimize the risk associated with rope wear. When rope tension decreases, the drive stops immediately, thus preventing personal injury and property damage.

Relevant categories & accessories

Frequently Asked Questions (FAQ)

What is the GFA slack rope switch used for?

For monitoring the cable tension on electrically operated gates with immediate motor stop.

What does "right-hand" execution mean?

The switch is designed for the right-hand mounting position of the gate system.

Is the switch manufacturer-specific?

Primarily suitable for GFA, but also universally applicable to suitable gate systems.

Does the switch need to be checked regularly?

Yes, a functional and safety check is required as part of maintenance.

Inquire about GFA slack rope switch on the right at Tormeister 24.

For safe, standards-compliant gate systems. We provide expert advice on correct design and installation.
