SKU: 141632

Marantec slack rope switch with shaft lever | NC, IP65, convertible

Name: Marantec slack rope switch with shaft lever | NC, IP65, convertible
Brand: Marantec
SKU: 141632
Price: 149.0 EUR
Availability: InStock

€149,00

Tax included Shipping calculated at checkout.

Description

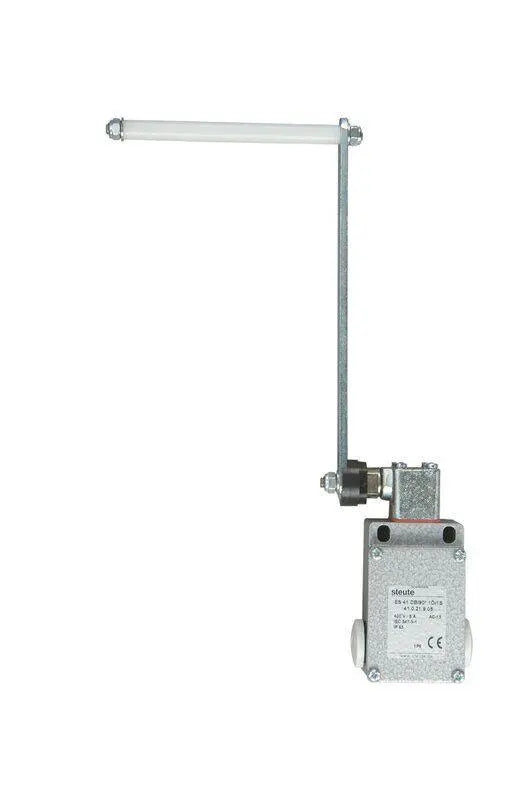

Marantec slack rope switch with axle lever

Conventional slack rope switch with shaft lever and NC contact for reliable monitoring of rope tension on gate systems. Reversible for left- or right-hand operation, cable-free, for controllers with NC input.

Product overview

The Marantec slack rope switch with axle lever is a safety-relevant component for gate systems. It monitors the rope tension and reliably reports slack rope or rope breakage to the control unit. The normally closed (NC) contact immediately shuts off the system in the event of any fault to prevent uncontrolled gate movements.

Technical data

Connection type:
Conventional

Contact type:
1 × NC

Protection class:
IP65

Renovation:
Left or right side

Operating temperature:
-20 °C to +60 °C

Dimensions (W x H x D):
40 × 65 × 25 mm

Weight:
0.27 kg

Scope of delivery:
Slack rope switch with axle lever

Advantages & Safety

NC contact for maximum operational reliability
Reliably detects slack rope or rope breakage
Immediate shutdown of the gate system in case of malfunction
Convertible to left or right side
Robust housing with IP65 protection rating
Suitable for continuous industrial use
Significant contribution to personal and occupational safety

Application & Assembly

The slack rope switch is mounted at the designated position on the gate system and mechanically connected to the rope system. The axle lever transmits the rope tension directly to the switching contact. In the event of a voltage loss, the normally closed (NC) circuit opens and the control unit immediately shuts off the drive.

Safety & Occupational Safety:
The slack rope switch is a safety-relevant component. Installation, connection, and testing must only be carried out by qualified personnel. Work must only be performed when the system is de-energized. A functional test is mandatory after installation.

Practical example

In an industrial sectional door system, the Marantec slack rope switch with axle lever was installed to replace an older rope monitoring system. Thanks to the NC contact and robust design, the door system has since operated significantly more safely and reliably.

Relevant categories & accessories

Frequently Asked Questions (FAQ)

For which control systems is the slack rope switch suitable?

For gate controls with connection for NC slack rope switches.

Can the switch be mounted on the left or right?

Yes, the switch can be converted to be on the left or right side.

Is the slack rope switch suitable for outdoor use?

Yes, thanks to its IP65 protection rating, it is suitable for harsh industrial environments.

Does the switch need to be checked regularly?

Yes, regular functional and safety checks are required.

Inquire now about Marantec slack rope switches

For safe, standards-compliant gate systems with reliable cable monitoring. We offer expert advice on selection and installation.
