SKU: 179470 | Barcode: 4062435000310

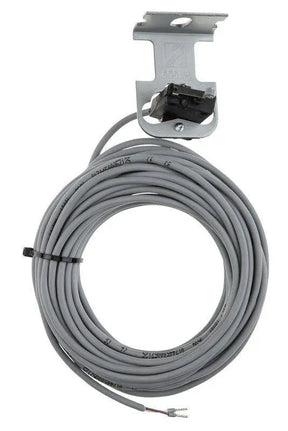

Marantec slack rope switch, right | 8.5 m cable, 8.2 kOhm, FlexiForce 440–600R

Name: Marantec slack rope switch, right | 8.5 m cable, 8.2 kOhm, FlexiForce 440–600R
Brand: Marantec
SKU: 179470
Price: 68.45 EUR
Availability: InStock

€68,45

Tax included Shipping calculated at checkout.

Description

Marantec slack rope switch, right side, for FlexiForce 440–600R

Conventional slack rope switch, right-hand version, 8.5 m Connection cable, NC contact with positive opening and integrated 8.2 kOhm resistance. Designed for FlexiForce rope break protection 440–600R.

Product overview

This Marantec slack rope switch was specifically designed for use developed for FlexiForce cable break safety devices of the 440–600R series. The right-hand version, including mounting brackets, ensures a Perfectly fitting installation. The integrated 8.2 kOhm resistor Enables secure connection to monitored security circuits.

Technical data

Connection type:
Conventional

Version:
Right (including angles)

Contact type:
1 × NC with forced opening

Resistance:
8.2 kOhm

Protection class:
IP65

Cable length:
8.5 m

Area of application:
FlexiForce 440–600R

Advantages & Safety

Suitable for FlexiForce rope break safety device 440–600R
Right version including mounting bracket
NC contact with positive opening for maximum safety
Integrated 8.2 kOhm resistor for monitored safety circuits
Immediate shutdown in case of rope breakage or slack rope
Robust design with IP65 protection rating
Significant contribution to personal and occupational safety

Application & Assembly

The slack rope switch is located on the right side of the FlexiForce- Cable break safety device installed and connected via the 8.5 m connection cable connected to the gate control system. With every change to the The safety contact opens when the rope is under tension and stops the Drive immediately.

Safety & Occupational Safety:
The slack rope switch is a safety-relevant component. Assembly, connection and testing may only be carried out by Work is carried out by qualified specialists. Work is only performed in accordance with regulations. Perform the work in a stress-free state. After assembly... A functional test is absolutely necessary.

Practical example

In an industrial sectional door system with FlexiForce The Marantec 440-600R cable break safety device was used on the right side. Slack cable switches are used. The 8.2 kOhm monitoring system is in place. Since then, it has ensured reliable shutdown in It significantly improves rope safety and reduces rope problems.

Relevant categories & accessories

Frequently Asked Questions (FAQ)

For which systems is this slack rope switch suitable?

For FlexiForce cable break protection 440–600R with 8.2 kOhm evaluation.

Why is an 8.2 kOhm resistor integrated?

For reliable monitoring of the safety circuit by the gate control system.

Can the switch be used on the left or right?

No, this version is specifically designed for the right side.

Does the slack rope switch need to be checked regularly?

Yes, regular functional and safety checks are required.

Marantec slack rope switch, right, inquire now

For safe, standards-compliant gate systems with FlexiForce Rope break protection 440–600R.
