SKU: 111004007
New arrival

Slack rope switch for Hörmann WA400 control unit | Rope monitoring

Regular price €84,90
Tax included Shipping calculated at checkout.

Description

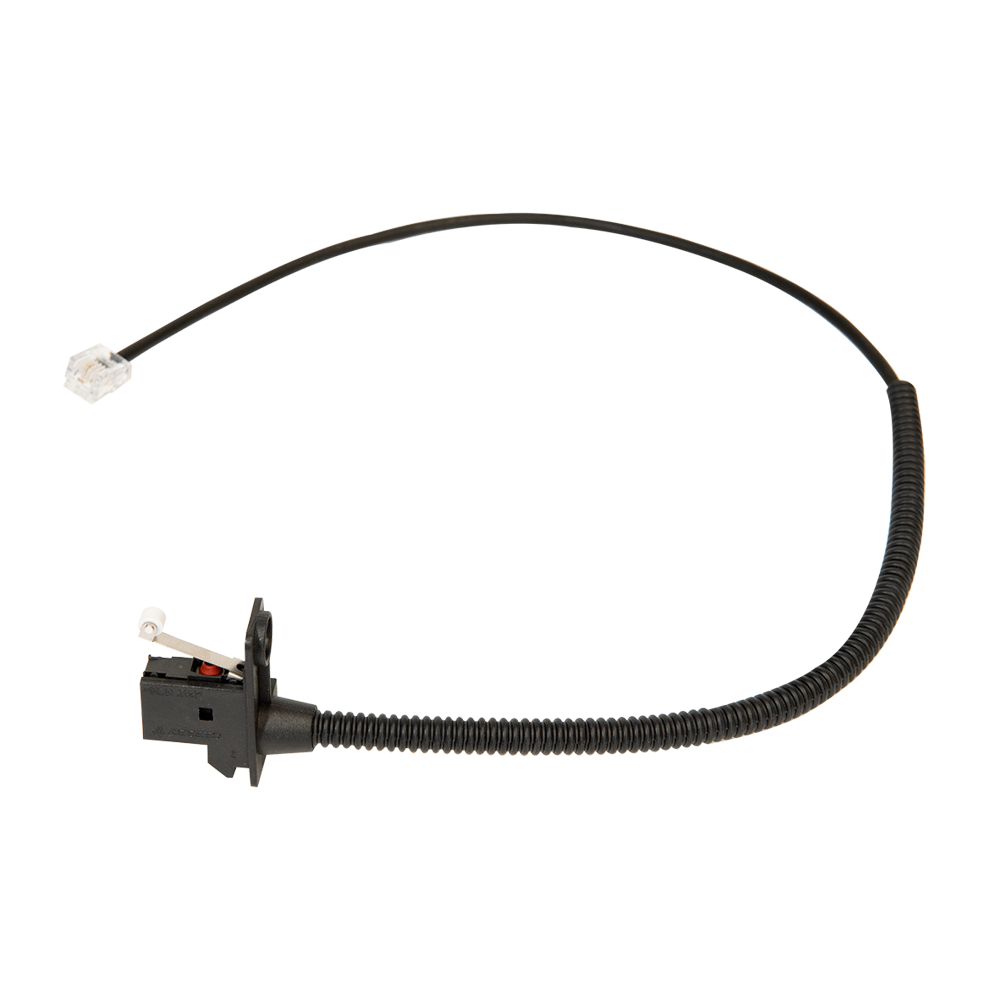

Slack rope switch for Hörmann WA400 control unit

Safety-relevant slack rope switch for reliable monitoring of rope tension on Hörmann gate systems with WA400 control. Detects voltage loss and stops the gate drive immediately.

Product overview

This slack rope switch is specifically designed for use with Hörmann garage door systems equipped with WA400 controls. It continuously monitors the door rope tension and immediately shuts off the drive in the event of slack or a broken rope. This makes a significant contribution to personal and workplace safety.

Technical data

Article number:
111004007
Product type:
Slack rope switch
Compatibility:
Hörmann WA400 control unit
Area of ​​application:
Electrically operated gates
Weight:
0.4 kg
Unit:
Piece
Gate manufacturer:
Hörmann

Advantages & Safety

  • Reliable cable tension monitoring for Hörmann gates
  • Immediate engine stop in case of slack rope or rope breakage
  • Increased personal and occupational safety
  • Protection of the gate system and control unit from consequential damage
  • Optimally matched to the Hörmann WA400 control system
  • Safety-relevant component for professional use

Application & Assembly

The slack rope switch is mounted at the designated position on the Hörmann garage door system and connected to the WA400 control unit. During operation, it continuously monitors the rope tension and sends a shutdown signal to the control unit in case of deviations.

Safety & Occupational Safety:
The slack rope switch is a safety-relevant component. Installation, connection, and testing must only be carried out by qualified personnel. Work must only be performed when the system is de-energized. A functional test is mandatory after installation.

Practical example

In a commercially used Hörmann sectional door system with WA400 control, the slack rope switch was installed to minimize the risk associated with rope wear. Since then, the drive reliably stops immediately upon loss of voltage, thus preventing personal injury and property damage.

Frequently Asked Questions (FAQ)

For which control system is the slack rope switch suitable?

It is specifically designed for Hörmann gate systems with WA400 control.

What happens when a rope breaks?

The switch detects the voltage loss and stops the gate drive immediately.

Is the slack rope switch relevant to safety?

Yes, it is a key component for personal and occupational safety.

Does the switch need to be checked regularly?

Yes, a functional and safety check is mandatory as part of maintenance.

Request a quote for a slack rope switch for Hörmann WA400 now.

Ensure maximum security for your Hörmann garage door system. We will provide expert advice on the correct selection and installation.

Get advice now
