SKU: SG8131R-1384

Torsion spring 1" shaft 25.4 mm | Powder-coated grey | 152x10.5x1384 mm RHW | Pre-assembled with 2 spring heads

Name: Torsion spring 1" shaft 25.4 mm | Powder-coated grey | 152x10.5x1384 mm RHW | Pre-assembled with 2 spring heads
Brand: Schweighöfer Tore
SKU: SG8131R-1384
Price: 335.5 EUR
Availability: InStock

€335,50

Tax included Shipping calculated at checkout.

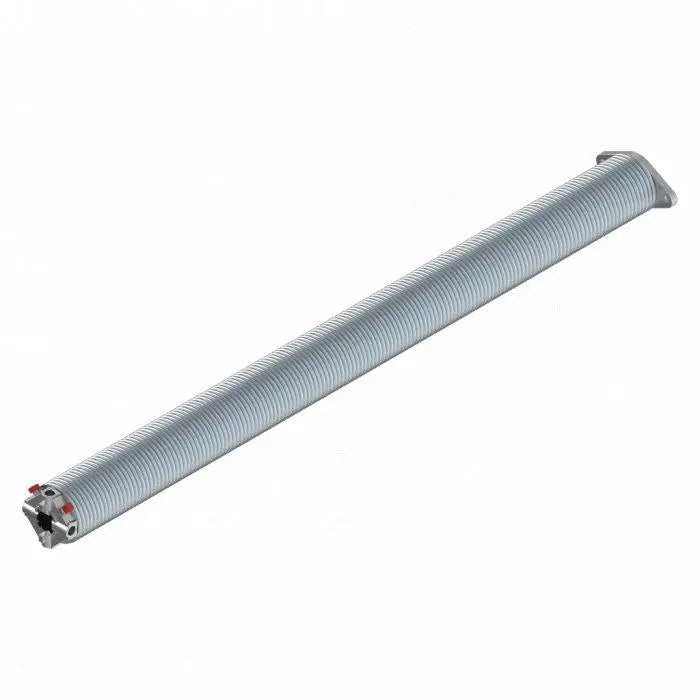

Torsion spring 1" shaft 25.4 mm | Powder-coated grey | 152x10.5x1384 mm RHW

Pre-assembled torsion spring with 2 spring heads (2P) for 1" shaft (25.4 mm) – powder coated, heat treated and waxed for maximum durability and safety.

⚠️ Safety warning: Working on pre-tensioned torsion springs is dangerous. Assembly and tensioning must only be carried out by trained professionals using appropriate tools. Wear protective gloves and safety glasses.

🔧 Technical specifications

Article number:
SG8131R-1384

Use:
Garage / Sectional door

Length:
1384 mm

Inner diameter:
152 mm

Wire thickness:
10.5 mm

Winding direction:
RHW (right-handed)

Surface:
Powder-coated grey, waxed inside

Wave recording:
1" shaft (25.4 mm)

Weight:
2.55 kg

💪 Features & Benefits

Pre-assembled torsion spring with two spring heads (2P) – ready for installation
Powder-coated exterior, waxed interior – optimal corrosion protection
Thermal post-treatment for long service life and load-bearing capacity
Suitable for 1" shaft (25.4 mm)
High strength and precise winding for smooth operation
Ideal for garage doors in private and industrial settings

⚙️ Manufacturing process

After being wound, the springs are unloaded in an oven and then treated in an advanced blasting system. The exterior undergoes a heat treatment and powder coating for corrosion protection, while the interior is coated with a wax film. This process significantly increases the load-bearing capacity and extends the service life.

🔗 Relevant categories & accessories

❓ FAQ

What does RHW mean?

RHW stands for "Right Hand Wound" – wound on the right. The winding direction must match the side of the goal.

Is this spring suitable for 1" shafts?

Yes, the torsion spring is designed for a shaft with a diameter of 25.4 mm (1 inch).

Can I install the spring myself?

No. Torsion springs are under high tension – installation should only be carried out by trained professionals using suitable clamping tools.

🛒 Order torsion spring 1" shaft 25.4 mm RHW now

High-quality, pre-assembled torsion spring – powder-coated, waxed & thermally treated for maximum durability and safety in every use.
