SKU: SG8131L-1392

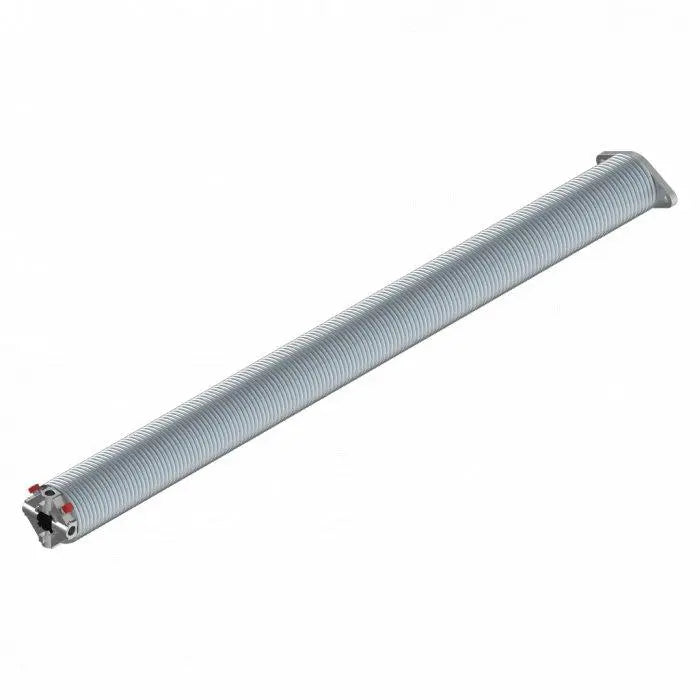

Torsion spring 1" shaft 25.4 mm | Powder-coated grey | 152x10.5x1392 mm LHW | Pre-assembled with 2 spring heads

Name: Torsion spring 1" shaft 25.4 mm | Powder-coated grey | 152x10.5x1392 mm LHW | Pre-assembled with 2 spring heads
Brand: Schweighöfer Tore
SKU: SG8131L-1392
Price: 348.9 EUR
Availability: InStock

€348,90

Tax included Shipping calculated at checkout.

Torsion spring 1" shaft 25.4 mm | Powder-coated grey | 152x10.5x1392 mm LHW

Pre-assembled torsion spring with 2 spring heads (2P) for 1" shaft (25.4 mm) – robust, corrosion-protected and designed for maximum service life.

⚠️ Safety warning: Working on pre-tensioned torsion springs is dangerous. Installation must only be carried out by trained specialists using appropriate tensioning tools. Always wear protective gloves and safety glasses.

🔧 Technical specifications

Article number:
SG8131L-1392

Use:
Garage / Sectional door

Length:
1392 mm

Inner diameter:
152 mm

Wire thickness:
10.5 mm

Winding direction:
LHW (Left-handed coiled)

Surface:
Powder-coated grey, waxed inside

Weight:
2.55 kg

Wave recording:
1" shaft (25.4 mm)

💪 Features & Benefits

Pre-assembled torsion spring with two spring heads – ready for installation
Thermally treated and powder-coated for optimal corrosion protection
Waxed inside for low-friction operation and longer durability
High load-bearing capacity thanks to precise spring geometry
Ideal for garage doors and light industrial doors
Increased lifespan due to special material treatment

⚙️ Manufacturing process

After being wound, the springs are unloaded in an oven and treated in a modern blasting system. This is followed by external thermal treatment, powder coating for corrosion protection, and an internal wax seal. This process significantly increases the spring's lifespan and load-bearing capacity.

🔗 Relevant categories & accessories

❓ FAQ

For which gates is this spring suitable?

The torsion spring is ideal for garage and sectional doors with a 1" shaft (25.4 mm) and a LHW winding direction.

What does LHW mean?

LHW stands for "Left Hand Wound" – wound on the left. The winding direction must match the side of the goal.

Can I install the spring myself?

No. Torsion springs should only be replaced by trained professionals using clamping tools.

🛒 Order torsion spring 1" shaft 25.4 mm now

High-quality, pre-assembled torsion spring – powder-coated and waxed for maximum durability. Ideal for garage doors and light industrial doors.
