SKU: SG8129R-1191

Torsion spring 152×10×1191 mm | RHW | 1" shaft 25.4 mm | Powder-coated grey | 2P

Name: Torsion spring 152×10×1191 mm | RHW | 1" shaft 25.4 mm | Powder-coated grey | 2P
Brand: Schweighöfer Tore
SKU: SG8129R-1191
Price: 279.0 EUR
Availability: InStock

€279,00

Tax included Shipping calculated at checkout.

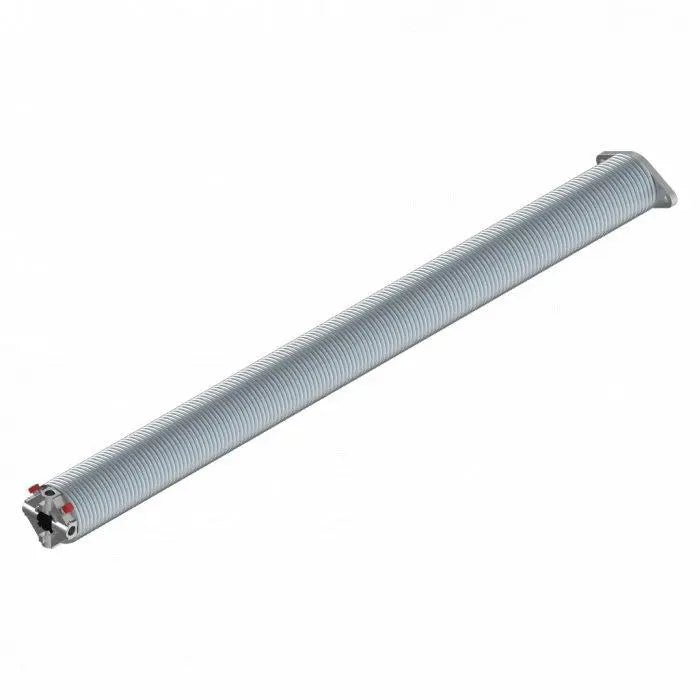

Torsion spring 152×10×1191 mm RHW | 1" shaft 25.4 mm | Powder-coated grey | 2P

Pre-assembled RHW torsion spring for 1" shaft (25.4 mm) – powder-coated, with wax film inside and thermally treated for long service life and smooth gate operation.

🔧 Technical specifications

Article No.:
SG8129R-1191

Area of application:
garage

Length:
1191 mm

Inner diameter:
152 mm

Wire thickness:
10 mm

Winding direction:
RHW (right-handed)

Wave:
1" (25.4 mm)

Surface:
Powder-coated – wax film inside

Treatment:
Thermally treated, blasted, furnace relieved

Color:
Gray

Pre-assembly:
2 spring heads (2P)

Weight:
2.55 kg

Unit:
Piece

💪 Features & Benefits

High-quality garage door torsion spring with precise RHW winding
Pre-assembled spring heads (2P) for quick and secure installation
Powder-coated surface for optimal corrosion protection
Internal wax film reduces friction and wear
Furnace relief and blasting treatment for maximum material stability

⚙️ Application & Assembly

This torsion spring is designed for sectional garage doors with a 1" (25.4 mm) shaft. It compensates for the weight of the door panel and ensures smooth, effortless operation.

Safety precautions: Torsion springs are under high preload. Work should only be carried out using suitable tension rods (Ø 12.7 mm), personal protective equipment (PPE), and a fixed shaft. Before starting, disconnect the drive from the power supply – if unsure, consult a qualified professional.

🏁 Practical example

This RHW torsion spring has proven its worth in sectional doors with regular use. The consistent spring force protects the drive and bearings, reduces noise, and extends the service life of the door system.

🔗 Relevant categories & accessories

❓ FAQ

What does RHW mean in the context of torsion springs?

RHW stands for Right Hand Wound – wound on the right. It is used on the left side of the gate in double spring systems (internal view).

How long does a torsion spring last?

With correct installation and regular maintenance, it can achieve tens of thousands of openings, depending on the cycle class.

Can I replace the spring myself?

Only with expert knowledge and safety equipment. If in doubt, consult a specialist company.

🛒 Order your torsion spring now

Order the torsion spring 152×10×1191 mm (RHW) for 1" shaft 25.4 mm – pre-assembled, powder-coated and safe for garage doors.

Check availability & request advice
