SKU: SG8129L-1216

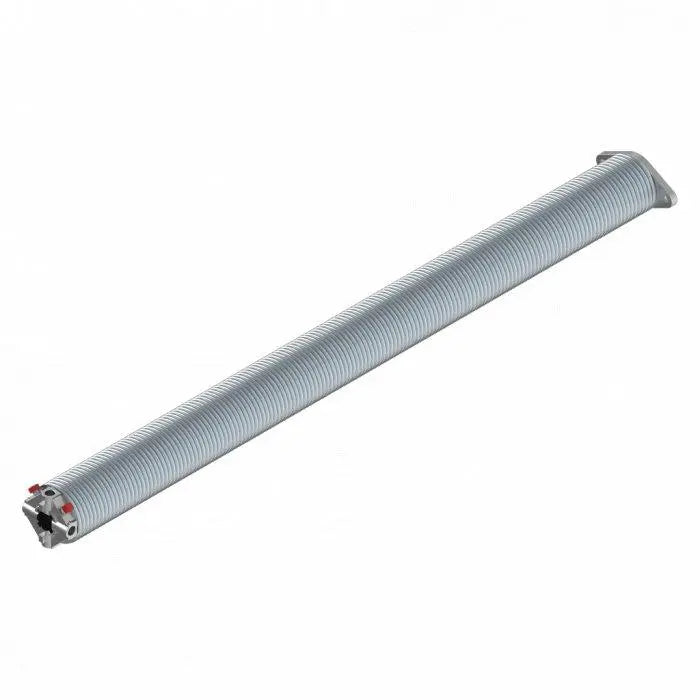

Torsion spring 152×8×1216 mm | LHW | 1" shaft 25.4 mm | Powder-coated grey | 2P

Name: Torsion spring 152×8×1216 mm | LHW | 1" shaft 25.4 mm | Powder-coated grey | 2P
Brand: Schweighöfer Tore
SKU: SG8129L-1216
Price: 284.2 EUR
Availability: InStock

€284,20

Tax included Shipping calculated at checkout.

Torsion spring 152×8×1216 mm LHW | 1" shaft 25.4 mm | Powder-coated grey | 2P

This left-hand wound torsion spring (LHW) for 1" shaft 25.4 mm offers optimal corrosion protection and long-lasting performance thanks to its powder-coated surface and wax film inside – pre-assembled with 2 spring heads (2P).

🔧 Technical specifications

Article No.:
SG8129L-1216

Area of application:
garage

Length:
1216 mm

Inner diameter:
152 mm

Wire thickness:
8 mm

Winding direction:
LHW (left wound)

Wave:
1" (25.4 mm)

Surface:
Powder-coated, wax film inside

Treatment:
Thermally relieved, blasted, corrosion-protected

Color:
Gray

Pre-assembly:
2 spring heads (2P)

Weight:
2.55 kg

Unit:
Piece

💪 Features & Benefits

Corrosion-resistant powder coating with additional wax film
Precisely wound for consistent spring force and smooth gate operation
Pre-assembled with 2P spring heads – ready for immediate installation
Thermal stress relief and blasting treatment for maximum durability
Ideal for sectional doors with a 1" shaft (25.4 mm)

⚙️ Application & Assembly

This torsion spring is specifically designed for garage doors operated with 1" shafts. The LHW winding is typically used on the right side of the door (viewed from the inside). Thanks to the pre-assembly with two spring heads, replacement is quick and easy.

Important safety notice: Torsion springs are under high tension. Use only suitable tensioning tools (Ø 12.7 mm) and wear appropriate protective equipment. If you are unsure, installation should be carried out by trained professionals.

🏁 Example of use

In garages with medium to high usage, the LHW torsion spring (152 x 8 x 1216 mm) ensures smooth movement of the garage door panel. This reduces the motor load and prevents uneven wear.

🔗 Relevant categories & accessories

❓ FAQ

Which side is the LHW spring intended for?

LHW stands for "Left Hand Wound" – this spring is installed on the right side of the gate (viewed from the inside).

How can I determine which winding direction I need?

In a double spring system, the LHW spring is on the right side, the RHW spring is on the left side.

Can the spring be reordered?

Yes, the exact reorder is made using the article number SG8129L-1216. We will be happy to assist you with this.

🛒 Order your torsion spring now

Secure your torsion spring 152×8×1216 mm (LHW) for 1" shaft 25.4 mm – pre-assembled, powder-coated and in professional quality.

Check availability & request a quote
