SKU: SG2211R-0576

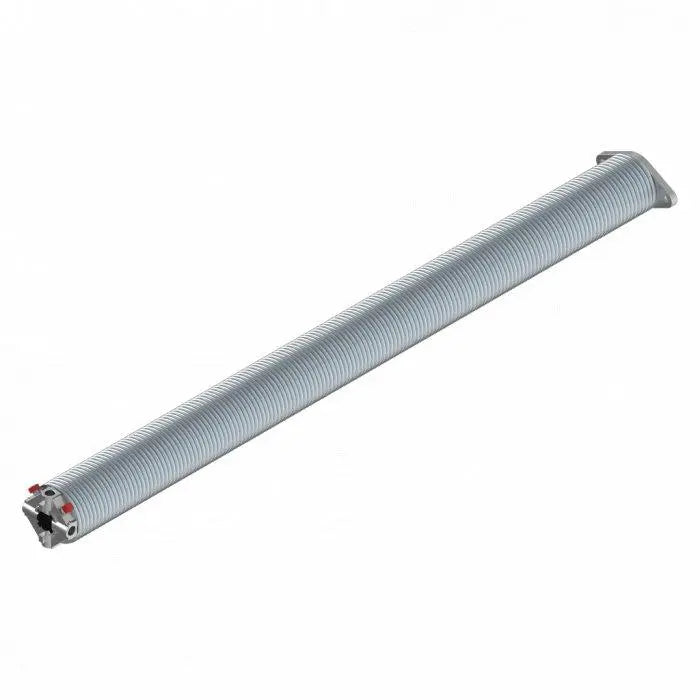

Torsion spring 1" shaft | 51×5.5×576 mm RHW | Powder-coated grey | 2P Pre-assembled

Name: Torsion spring 1" shaft | 51×5.5×576 mm RHW | Powder-coated grey | 2P Pre-assembled
Brand: Schweighöfer Tore
SKU: SG2211R-0576
Price: 52.0 EUR
Availability: InStock

€52,00

Tax included Shipping calculated at checkout.

Torsion spring 1" shaft 51×5.5×576 mm RHW | Powder-coated grey | Pre-assembled (2P)

The 51×5.5×576 mm RHW torsion spring is a high-quality, powder-coated, and durable spring for sectional doors with a 1" shaft. Thermally stress-relieved, blasted, waxed inside, and pre-assembled in 2P – for safe, quiet door operation and maximum service life.

🔧 Technical specifications

Article No.:
SG2211R-0576

Area of application:
Garage / ERA-RES

Length:
576 mm

Inner diameter:
51 mm

Wire thickness:
5.5 mm

Winding direction:
RHW (right-handed)

Wave:
1" (25.4 mm)

Surface treatment:
Powder coating

Internal treatment:
Wax film – reduces friction and abrasion

Color:
Gray

Material treatment:
Thermally relaxed, irradiated & thermally treated afterwards

Version:
Pre-assembled with 2 spring heads (2P)

Weight:
3.45 kg

Unit:
Piece

💪 Advantages & Features

RHW spring – mounting on the left side of the gate (interior view)
Powder-coated for high corrosion protection
Waxed inside for smooth, even running
Thermally stress-relieved and blasted – high load-bearing capacity and durability
2P pre-assembly – ready for immediate use
Ensures smooth, low-vibration gate operation
Tormeister 24: Focus on certified quality & workplace safety

⚙️ Application & Assembly

This RHW torsion spring is mounted on the left side of the door in double spring systems. It reliably balances the weight of the door leaf, ensures smooth operation, and increases the service life of the entire door system.

Safety Notice: Torsion springs are under extreme tension. Never install them without tension rods (Ø 12.7 mm), personal protective equipment, and a de-energized drive. Tormeister 24 strongly recommends professional installation only – risk of death if operated incorrectly!

🏁 Practical example

This 51×5.5×576 mm RHW spring was used during the repair of a heavily used sectional door. The result: significantly smoother operation, noticeably less stress on the drive mechanism, and more stable, safer overall performance of the door system.

🔗 Relevant categories & accessories

❓ FAQ

For which side is RHW suitable?

RHW = right-hand wound → assembly on the left (viewed from the inside).

Can I replace the spring myself?

No, the preload is life-threatening – only have it installed by a professional.

Why is there a wax film inside?

It reduces friction, minimizes abrasion and ensures a longer service life.

🛒 Order your torsion spring now

Order the torsion spring 51×5.5×576 mm RHW – powder-coated, pre-assembled & perfect for safe, durable gate systems.
