SKU: SG2211L-0645

Torsion spring 51×5.5×645 mm LHW | 1" shaft 25.4 mm | Powder-coated grey | 2P Pre-assembled

Name: Torsion spring 51×5.5×645 mm LHW | 1" shaft 25.4 mm | Powder-coated grey | 2P Pre-assembled
Brand: Schweighöfer Tore
SKU: SG2211L-0645
Price: 51.0 EUR
Availability: InStock

€51,00

Tax included Shipping calculated at checkout.

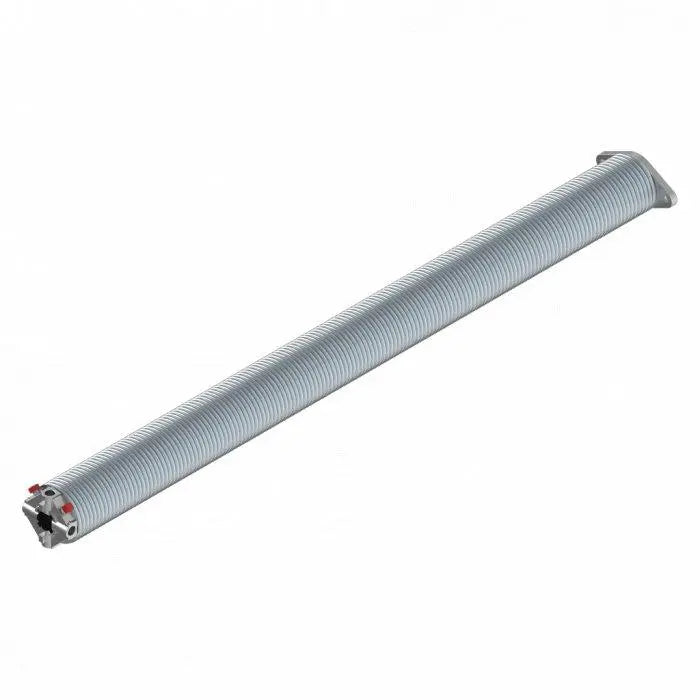

Torsion spring 51×5.5×645 mm LHW | 1" shaft 25.4 mm | Powder-coated grey | 2P

The LHW torsion spring 51×5.5×645 mm is a powder-coated, pre-assembled garage door spring for sectional doors with a 1" shaft (25.4 mm). It impresses with its stability, corrosion protection and long service life.

🔧 Technical specifications

Article No.:
SG2211L-0645

Area of application:
garage

Series:
ERA-RES

Length:
645 mm

Inner diameter:
51 mm

Wire thickness:
5.5 mm

Winding direction:
LHW (left-handed)

Wave:
1" (25.4 mm)

Surface:
Powder-coated, wax film inside

Treatment:
Thermally discharged, blasted, corrosion-resistant

Color:
Gray

Pre-assembly:
2 spring heads (2P)

Weight:
3.65 kg

Unit:
Piece

💪 Advantages & Features

Left-hand wound LHW spring for sectional doors with 1" shaft
Thermally treated, powder-coated and waxed inside
High load-bearing capacity and even force distribution
Pre-assembled with 2P spring heads – ready for installation
Corrosion and weather resistant
Meets all current safety guidelines

⚙️ Application & Assembly

This LHW spring is mounted on the right side of the gate (when viewed from the inside). It precisely balances the weight of the gate leaf and ensures smooth, even operation. The wax coating reduces friction and protects the spring from internal corrosion.

Safety tip: Only work on torsion springs using suitable tensioning tools (Ø 12.7 mm) and full protective equipment. Tormeister 24 recommends installation by qualified professionals.

🏁 Practical example

This torsion spring is frequently used in ERA-RES series garage doors. It offers constant force transmission, quiet operation and maximum reliability – ideal for residential and workshop doors.

🔗 Relevant categories & accessories

❓ FAQ

What does LHW mean?

LHW stands for "Left Hand Wound" – left-hand wound. This spring is mounted on the right side (viewed from the inside) in double spring systems.

How long does a torsion spring last?

With proper installation and maintenance, up to 25,000 opening cycles are possible. Lubrication and inspections significantly extend the service life.

How do I recognize the correct winding direction?

LHW springs (left-handed) are for the right side of the goal, RHW springs (right-handed) for the left side – viewed from the inside.

🛒 Order your torsion spring now

Order the torsion spring 51×5.5×645 mm LHW for 1" shaft 25.4 mm directly from Tormeister 24 – pre-assembled, durable and safe in operation.
