SKU: SG2309L-1700

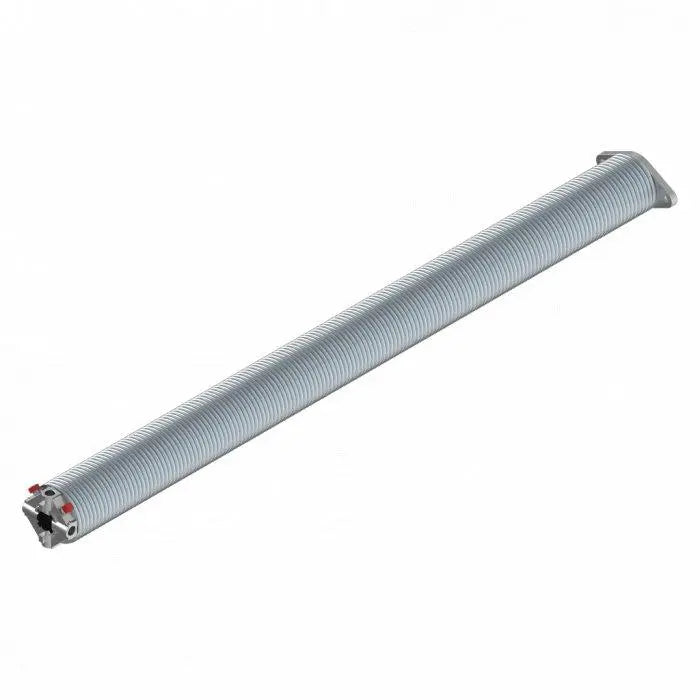

Torsion spring 51×5×1700 mm LHW | 1" shaft 25.4 mm | Powder-coated grey | 2P Pre-assembled

Regular price €86,00
Tax included Shipping calculated at checkout.

Torsion spring 51×5×1700 mm LHW | 1" shaft 25.4 mm | Powder-coated grey | 2P

The LHW torsion spring 51×5×1700 mm is a durable, powder-coated garage door spring for sectional doors with a 1" (25.4 mm) shaft. Pre-assembled with 2 spring heads, safe and corrosion-resistant.

🔧 Technical specifications

Article No.:
SG2309L-1700
Area of ​​application:
garage
Length:
1700 mm
Inner diameter:
51 mm
Wire thickness:
5 mm
Winding direction:
LHW (left-handed)
Wave:
1" (25.4 mm)
Surface:
Powder-coated, wax film inside
Treatment:
Thermally discharged, blasted, corrosion-resistant
Color:
Gray
Pre-assembly:
2 spring heads (2P)
Weight:
2.55 kg
Unit:
Piece

💪 Advantages & Features

  • Left-hand wound LHW spring for garage doors with 1" shaft
  • Pre-assembled with 2P spring heads for easy installation
  • Powder-coated and waxed inside for corrosion protection
  • Thermally treated for consistent spring performance
  • Durable, robust and safe in operation
  • Meets current safety and occupational health guidelines

⚙️ Application & Assembly

The LHW spring is mounted on the right side of the gate (when viewed from the inside) in double spring systems. It precisely balances the weight of the gate leaf and ensures smooth operation. Pre-assembly with 2P spring heads makes installation quick and easy.

Safety tip: Installation only with a suitable clamping tool (Ø 12.7 mm) and protective clothing. Disconnect the drive from the power supply before working. For maximum safety, Tormeister 24 recommends installation by qualified personnel.

🏁 Practical example

Ideal for garages with regular door operation. The LHW spring offers even force distribution, quiet operation, and a long service life. A wax film and powder coating effectively protect against rust and moisture.

❓ FAQ

What does LHW mean?

LHW stands for "Left Hand Wound" – left-hand wound. This spring is mounted on the right side (viewed from the inside) in double spring systems.

How do I identify the correct side of the spring?

LHW springs are mounted on the right, RHW springs on the left. The winding direction indicates the direction of rotation when tensioning.

How long does a torsion spring last?

With proper maintenance, up to 25,000 cycles are possible. Regular visual inspection and relubrication extend the service life.

🛒 Order your torsion spring now

Order the torsion spring 51×5×1700 mm LHW for 1" shaft 25.4 mm directly from Tormeister 24 – pre-assembled, durable and safe in operation.
