SKU: SG4309R-1700

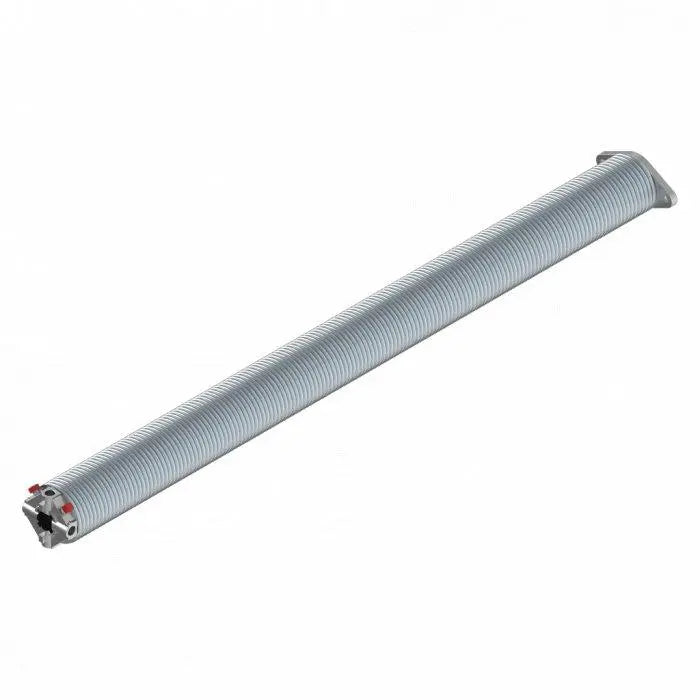

Torsion spring 67×5×1700 mm | RHW | 1" shaft 25.4 mm | Powder-coated grey | 2P

Name: Torsion spring 67×5×1700 mm | RHW | 1" shaft 25.4 mm | Powder-coated grey | 2P
Brand: Schweighöfer Tore
SKU: SG4309R-1700
Price: 103.0 EUR
Availability: InStock

€103,00

Tax included Shipping calculated at checkout.

Torsion spring 67×5×1700 mm RHW | 1" shaft 25.4 mm | Powder-coated grey | 2P

This RHW torsion spring for 1" shafts (25.4 mm) is powder-coated, coated with wax film on the inside and thermally treated – for long-lasting spring force and smooth gate operation.

🔧 Technical specifications

Article No.:
SG4309R-1700

Area of application:
garage

Length:
1700 mm

Inner diameter:
67 mm

Wire thickness:
5 mm

Winding direction:
RHW (right-hand winding)

Wave:
1" (25.4 mm)

Surface:
Powder-coated, with wax film inside

Treatment:
Oven-relieved, blasted, thermally refined

Color:
Gray

Pre-assembly:
2 spring heads (2P)

Weight:
2.55 kg

Unit:
Piece

💪 Features & Benefits

RHW winding for garage doors with 1" shaft (25.4 mm)
Powder coating on the outside + wax film on the inside = double protection against corrosion
Thermally treated – stable and break-resistant
Pre-assembled 2P spring heads for quick installation
Uniform spring force for smooth, low-wear operation

⚙️ Application & Assembly

The right-handed RHW torsion spring is installed on the left inside side of the gate (as viewed from the inside). It balances the weight of the gate leaf and assists the drive mechanism during opening and closing. Thanks to pre-assembly with two spring heads, it is ready for immediate installation.

Safety note: Torsion springs are under high tension. Work should only be carried out with suitable tools (tension rods Ø 12.7 mm) and personal protective equipment (PPE). Disconnect the drive from the power supply before starting. Professional installation is recommended.

🏁 Practical example

In garages with frequent door use, this RHW spring ensures smooth movement and minimal stress on the drive mechanism. The combination of wax film and powder coating guarantees a long service life and corrosion resistance.

🔗 Relevant categories & accessories

❓ FAQ

What does RHW mean?

RHW = "Right Hand Wound" – wound to the right. It is mounted on the left inside of the gate (as viewed from the inside) when used with double springs.

How long does a torsion spring last?

Depending on usage frequency and care, it lasts for tens of thousands of opening cycles – regular checks are recommended.

Which parameters are important?

Dimensions such as wire thickness, length, inner diameter and winding direction must match the old spring.

🛒 Order your torsion spring now

Order the torsion spring 67×5×1700 mm (RHW) for 1" shaft 25.4 mm – pre-assembled, powder-coated and in professional quality.
