SKU: SG4215R-0834

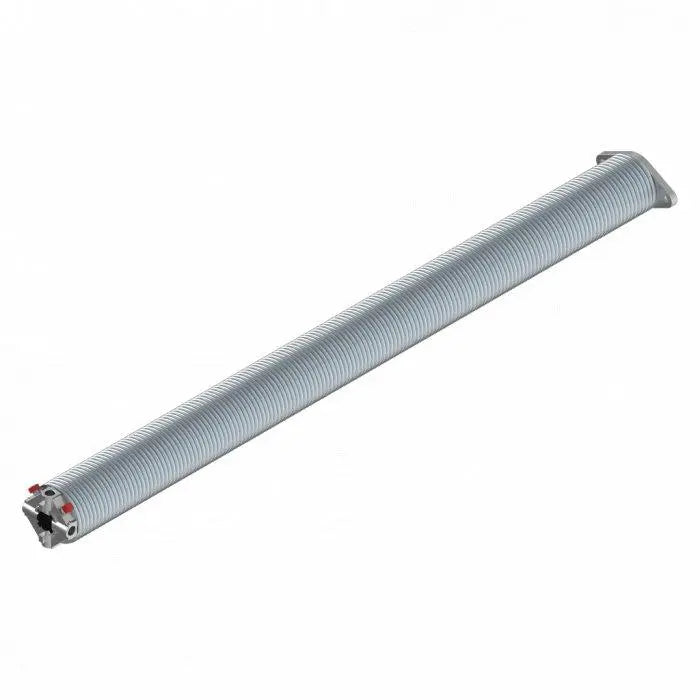

Torsion spring 1" shaft 67×6.5×834 mm RHW | Powder-coated grey | 2P industrial spring

Name: Torsion spring 1" shaft 67×6.5×834 mm RHW | Powder-coated grey | 2P industrial spring
Brand: Schweighöfer Tore
SKU: SG4215R-0834
Price: 80.0 EUR
Availability: InStock

€80,00

Tax included Shipping calculated at checkout.

Torsion spring 1" shaft 67×6.5×834 mm RHW | Powder-coated grey | 2P industrial spring

Robust torsion spring 67×6.5×834 mm RHW for industrial and garage doors with 1" shaft (25.4 mm). Powder-coated, waxed inside and thermally treated – for high cycle counts, smooth gate operation and maximum workplace safety.

🔧 Technical specifications

Article No.:
SG4215R-0834

Area of application:
Industry & Garage (IND & RES)

ERA-IND / ERA-RES:
ERA-RES

Length:
834 mm

Inner diameter:
67 mm

Wire thickness:
6.5 mm

Winding direction:
RHW (right-handed)

Wave:
1" (25.4 mm)

Version:
Pre-assembled with 2 spring heads (2P)

Weight:
7.68 kg

Surface treatment:
Powder coating, grey

Interior coating:
Wax film – reduces friction and abrasion

Material process:
Oven-unloaded, blasted, externally thermally treated

💪 Features & Benefits

A wire thickness of 6.5 mm ensures high load-bearing capacity and long-lasting spring action.
67 mm inner diameter – suitable for heavy sectional doors in industrial and commercial areas.
Powder-coated surface in grey to protect against corrosion and weathering.
Waxed interior: reduced abrasion, less noise, smoother gate operation.
Pre-assembled with 2 spring heads (2P) – saves time during assembly and service.
Ideal for heavily used gate systems in logistics, workshops and parking garages.
Tormeister 24 stands for reliable spare parts with a clear focus on occupational safety.

⚙️ Application & Assembly

The torsion spring 67×6.5×834 mm RHW is used on sectional doors with a 1" shaft. In classic double spring systems, an RHW spring is usually located on the left side of the gate. (Interior view) mounted and works together with a matching counter spring on the right side.

Through correct spring calculation and the right preload, the gate leaf weight Reliably balanced. The gate drive is relieved of stress; fittings, shaft, and bearings are protected. less strain is placed on the system, and the entire system runs more quietly and in a more controlled manner.

Safety Notice:
Torsion springs are under considerable preload. Work on spring shafts, cones and Clamping systems may only be operated by qualified specialists using suitable tools. This procedure must be carried out. Incorrect handling can lead to serious injuries.

Goalkeeper 24 recommends: always use personal protective equipment, Insert the appropriate tensioning steel and fully engage the drive before starting any work. Switch off the power.

🏁 Practical example

In a freight forwarding company with high door traffic, a worn-out spring system was replaced with a new one. The combination with the torsion spring 67×6.5×834 mm RHW was replaced. After the replacement, the gate worked. significantly quieter, the engine was noticeably relieved of stress, and maintenance intervals could be extended. will be. At the same time, the operational reliability of the plant increased.

🔗 Relevant categories & accessories

❓ FAQ – Questions about the torsion spring 67×6.5×834 mm RHW

For which side of the goal is RHW designed?

RHW means right-handed. In typical double spring systems, the RHW spring is located in the Rule on the left side of the goal (inside view). However, the exact position depends on the The respective spring calculation and the gate construction depend on it.

Can I replace the torsion spring myself?

No. Replacing torsion springs is a safety-critical task. Because The high tension poses a significant risk of injury. Goalkeeper 24 recommends exclusively the use of trained fitters.

Why is the inside of the spring coated with a film of wax?

The wax film reduces friction and abrasion between the coils. This ensures a smoother gate operation, less noise and a longer lifespan for the spring system – especially with a high number of cycles.

Is the spring also suitable for smaller garage doors?

In principle, it can also be used in high-quality garage door systems, if Spring calculation, gate size, and weight must match the specifications. If in doubt, please contact us. We are happy to assist with the selection.

🛒 Torsion spring 67×6.5×834 mm RHW - request a quote now

Are you planning to replace a spring system or repair your gate system? The torsion spring 1" shaft 67×6.5×834 mm RHW provides you with a Robust, corrosion-resistant industrial spring with a clear focus on durability. and occupational safety.
