SKU: SG4317L-1227

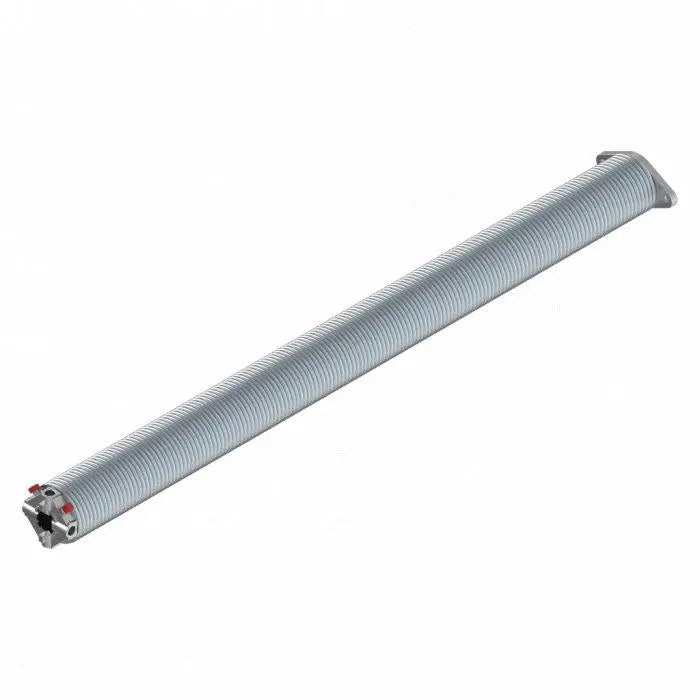

Torsion spring 67×7×1227 mm | LHW | 1" shaft 25.4 mm | Powder-coated grey | 2P

Name: Torsion spring 67×7×1227 mm | LHW | 1" shaft 25.4 mm | Powder-coated grey | 2P
Brand: Schweighöfer Tore
SKU: SG4317L-1227
Price: 104.0 EUR
Availability: InStock

€104,00

Tax included Shipping calculated at checkout.

Torsion spring 67×7×1227 mm LHW | 1" shaft 25.4 mm | Powder-coated grey | 2P

This LHW torsion spring for 1" (25.4 mm) shafts combines precise spring force, corrosion protection, and durability. Powder-coated, heat-treated, and internally coated with wax – pre-assembled with two spring heads (2P).

🔧 Technical specifications

Article No.:
SG4317L-1227

Area of application:
garage

Length:
1227 mm

Inner diameter:
67 mm

Wire thickness:
7 mm

Winding direction:
LHW (left wound)

Wave:
1" (25.4 mm)

Surface:
Powder-coated, with wax film inside

Treatment:
Oven-relieved, blasted, thermally refined

Color:
Gray

Pre-assembly:
2 spring heads (2P)

Weight:
2.55 kg

Unit:
Piece

💪 Features & Benefits

Left-wound LHW spring for sectional doors with 1" shaft
Double protection through powder coating and wax film
Oven and blasting treatment for optimal spring stability
Pre-assembled 2P spring heads simplify installation.
Quiet and smooth gate operation – ideal for everyday use

⚙️ Application & Assembly

The LHW spring 67×7×1227 mm is installed on the right side of the gate (viewed from the inside). It balances the weight of the gate leaf and ensures smooth operation. Thanks to pre-assembly, it is ready for immediate installation – ideal for maintenance and replacement.

Safety tip: Torsion springs are under high tension. Installation should only be carried out using suitable clamping tools (Ø 12.7 mm) and protective equipment. Disconnect the drive from the power supply before starting. Professional installation is recommended.

🏁 Practical example

In heavily used garages, the LHW spring ensures even force distribution. Its coating makes it resistant to rust and moisture – ideal for durable sectional doors with precise mechanics.

🔗 Relevant categories & accessories

❓ FAQ

What does LHW mean?

LHW stands for "Left Hand Wound" – wound on the left. It is mounted on the right side (viewed from the inside) in double spring systems.

What do I need to pay attention to during the replacement process?

The inner diameter, wire thickness, length and winding direction must exactly match the old spring.

How long does the spring last?

With correct installation and maintenance, it achieves tens of thousands of openings, depending on the cycle class.
