SKU: SG4217R-0857

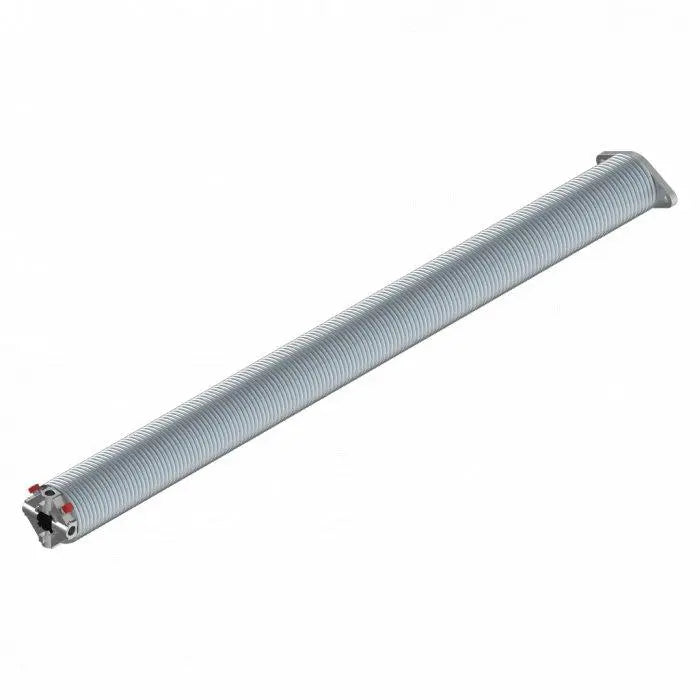

Torsion spring 1" shaft | 67×7×857 mm RHW | Powder-coated grey | 2P industrial spring

Name: Torsion spring 1" shaft | 67×7×857 mm RHW | Powder-coated grey | 2P industrial spring
Brand: Schweighöfer Tore
SKU: SG4217R-0857
Price: 85.0 EUR
Availability: InStock

€85,00

Tax included Shipping calculated at checkout.

Torsion spring 1" shaft 67×7×857 mm RHW | Powder-coated grey | Industrial spring (2P)

The 67×7×857 mm RHW torsion spring is a robust, heavy-duty industrial spring for large and heavily used sectional doors. Powder-coated, waxed inside, heat-treated and 2P pre-assembled – maximum safety, smooth operation and durability.

🔧 Technical specifications

Article No.:
SG4217R-0857

Area of application:
Industry & Garage (IND & RES)

Length:
857 mm

Inner diameter:
67 mm

Wire thickness:
7 mm

Winding direction:
RHW (right-handed)

Wave:
1" (25.4 mm)

Surface treatment:
Powder coating – excellent corrosion protection

Internal treatment:
Wax film – reduces friction and abrasion

Color:
Gray

Material treatment:
Thermally discharged, blasted & heat-treated

Version:
2P – pre-assembled spring heads

Weight:
8.56 kg

Unit:
Piece

💪 Advantages & Features

Heavy-duty 67mm industrial spring – ideal for large & heavy sectional & industrial doors
RHW → Installation on the left side of the gate (interior view)
7 mm wire thickness → high load capacity & long-lasting spring characteristics
Powder-coated → maximum protection against corrosion
Waxed interior → smoother running, less friction, reduced wear
Thermally stress-relieved and blasted → highest stability and material quality
2P pre-assembly → perfect fit & quick installation
Tormeister 24 = high-quality industrial standards + maximum workplace safety

⚙️ Application & Assembly

The RHW spring is mounted on the left side of the door (viewed from the inside) in double spring systems. It is ideal for industrial buildings, workshops, logistics doors, and heavily loaded sectional doors. It reliably compensates for high door leaf weights and significantly reduces stress on the motor and mechanical components.

Safety Notice: Industrial springs are under extreme preload. Work only with tension rods (Ø 12.7 mm), personal protective equipment (PPE), and a completely tension-free drive. Tormeister 24 strongly recommends professional installation — extremely high risk of accidents!

🏁 Practical example

In an industrial building, a stiff gate was overhauled using this 67×7×857 mm RHW spring. The result: significantly quieter operation, improved stability, reduced motor load, and noticeably enhanced operational reliability.

🔗 Relevant categories & accessories

❓ FAQ

Which side is RHW for?

RHW = right-handed winding → assembly is done on the left (viewed from the inside).

Can this industrial spring be replaced by oneself?

Absolutely not. These springs are extremely dangerous. Installation should only be carried out by qualified personnel!

Why is the inside of the spring waxed?

The wax film reduces friction, minimizes abrasion and ensures long-lasting, smooth gate operation.

🛒 Order industrial springs now

Order the torsion spring 67×7×857 mm RHW – heavy industrial quality, pre-assembled & ideal for demanding gate systems.
