Sommer twist 350 swing gate operator – single-leaf up to 4 m / 700 kg – including control unit, radio & hand transmitter

The Sommer twist 350 is a powerful swing gate operator for single-leaf gates up to 4 m wide or 700 kg in weight . It impresses with its universal applicability for DIN right and DIN left openings, as well as its elegant design and high safety standards.

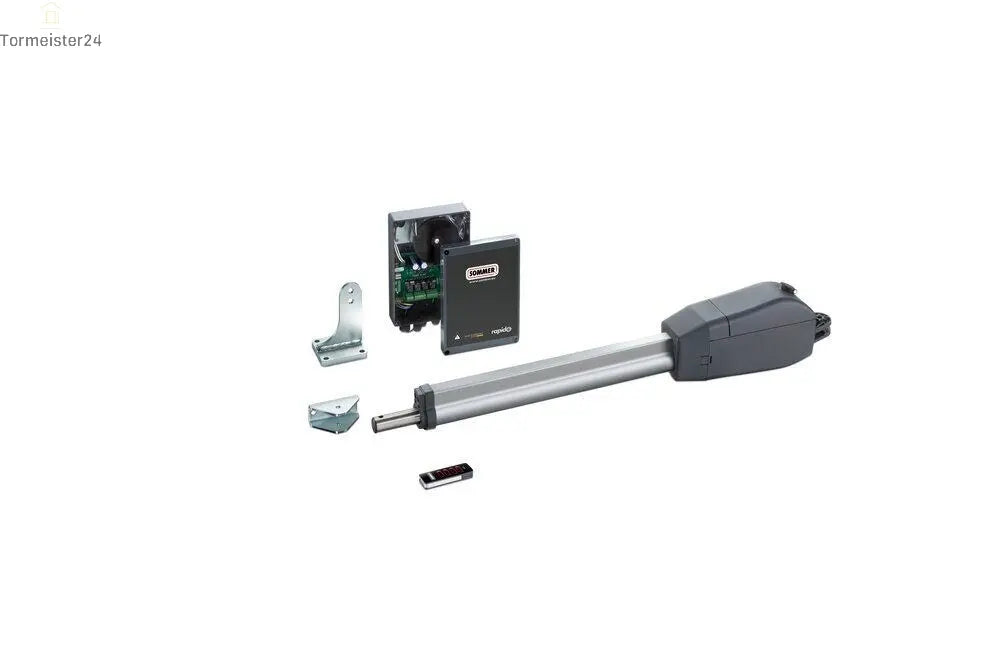

✅ Scope of delivery

• 1× Swing gate operator twist 350 (DIN right/left compatible)
• 1× DTA-1 controller in IP65 housing (250 × 175 × 75 mm)
• 1× radio receiver SOMup4 (868.95 MHz, SOMloq2, 40 memory locations)
• 1× 4-command handheld transmitter Pearl Vibe (with vibration feedback)
• 1× Post & gate leaf fittings (galvanized)
• 1× slot for memory expansion Memo (optional)

🛡️ Security & Reliability

• Patented braking system protects gear motor from overload
• Self-locking prevents sliding in case of wind or vandalism
• Accident protection thanks to Dynamic Power System (DPS) & force measurement
• Mechanical emergency release in case of power failure

🚀 Comfort features in everyday life

• Pedestrian door function – only one wing is opened
• Automatic closing after passing through the light barrier
• Side cable outlet – protection against cable damage, optimal appearance

🔧 Expandable & combinable

The twist 350 can be combined with the twist 200 E/EL and twist XL (via the "twist XS" conversion kit) for asymmetrical gate systems. It can also be equipped with special fittings for rising gates or difficult installation situations.

🔐 SOMloq2 radio technology

• 128-bit AES encryption with rolling code
• Autorepeat function for automatic opening during approach
• Hop function to increase range by signal forwarding
• Backwards compatible with Somloq Rollingcode

💡 For the highest demands on power, comfort & safety

The twist 350 is the perfect operator for anyone looking for a powerful, durable and smart solution for single-leaf swing gates – private or commercial.

twist 350 swing gate operator – powerful single-leaf operator for large gates

Assembly instructions Click here to go to the assembly instructions

Checklist for swing gate operators Click here to start the download
