Areas of application

  • Loading bridges with platform lift
  • Loading ramps in logistics and distribution centers
  • Industrial halls with high docking frequency
  • Refrigerated & hygienic storage
  • Maintenance, repair & modernization of existing ramp systems

Cylinder types in this collection

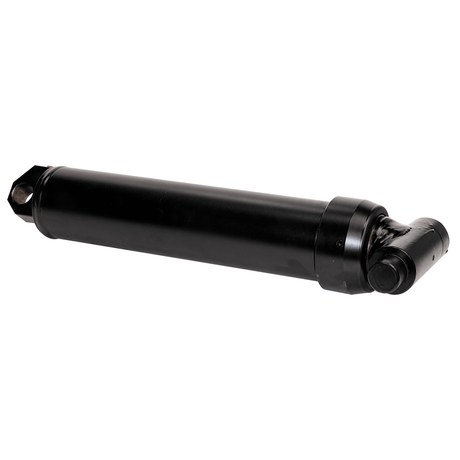

Lift cylinder (IDD-LO)

High-performance lifting cylinders for platform lifting, e.g. B. IDD-LO 70 and IDD-LO 90 . Designed for heavy loads and long service life.

Platform lifting cylinder

Cylinders with defined stroke lengths (e.g. 305 mm, 505 mm), tailored to the mechanics of the loading bridge.

Set & single cylinders

Depending on the ramp system, as a single cylinder or Available as a complete cylinder set.

Stroke lengths & designs

The lifting cylinders are available in different stroke lengths . available to accommodate different ramp heights and platform movements to cover safely:

  • Typical stroke lengths: 305 mm , 505 mm and others
  • Versions for light to heavy platforms
  • Hydraulic design for smooth, jerk-free stroke

For the replacement, stroke length, installation dimensions and connection type are crucial – not just the name of the cylinder.

Compatibility & Systems

The lifting and hoisting cylinders in this collection are compatible with, among others:

  • Loading systems (e.g. IDD-LO 70 / IDD-LO 90)
  • Crawford

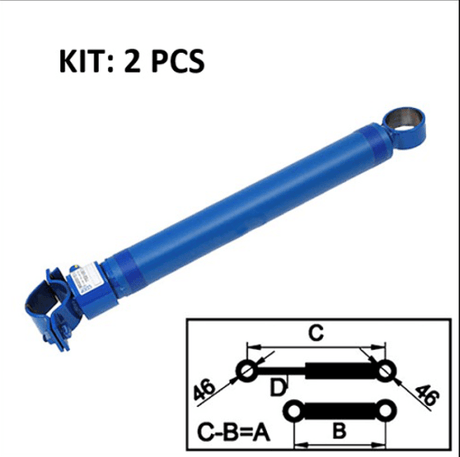

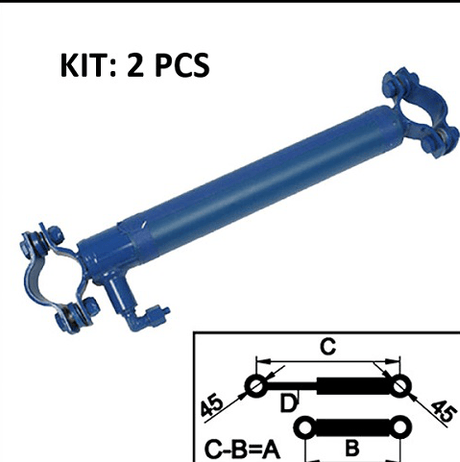

  • Hafa
  • Other cross-manufacturer ramp systems

For reliable operation, we recommend synchronization via Type plate, stroke length and connection dimensions of the existing cylinder.

Accessories & Mounting

  • Cylinder clamps (e.g. for model years from 2002 onwards)
  • Fasteners & brackets
  • Suitable hydraulic hoses & fittings

Selection guide – finding the right lifting cylinder

  • Cylinder type: Lift or platform cylinder?
  • Stroke length: exactly matching the loading bridge
  • Installation length: retracted/extended
  • Connection type: Threaded, bolted, clamped
  • Existing system: Replacement or modernization?

Frequently Asked Questions (FAQ)

What is a lifting cylinder used for?

Lifting cylinders raise and lower the platform of the loading bridge and bear the main load during the loading process.

What is the difference between IDD-LO 70 and IDD-LO 90?

The difference lies in the design and load-bearing capacity – depending on ramp type and load requirements.

Can I replace individual lifting cylinders?

Yes, provided the design, stroke length and connection are identical. If you are unsure, we recommend a technical inspection.

Find the right lifting cylinder for your loading ramp

Send us photos, nameplate or technical data – We will assist you in selecting the right lifting or hoisting cylinder.

Request consultation & quote
