Areas of application

  • Loading bridges with hinged wedge lip
  • Loading bridges with feed lip
  • Loading ramps in logistics and industrial facilities
  • Refrigeration and hygiene areas with high operational reliability
  • Modernization & repair of existing ramp systems

Cylinder types in this collection

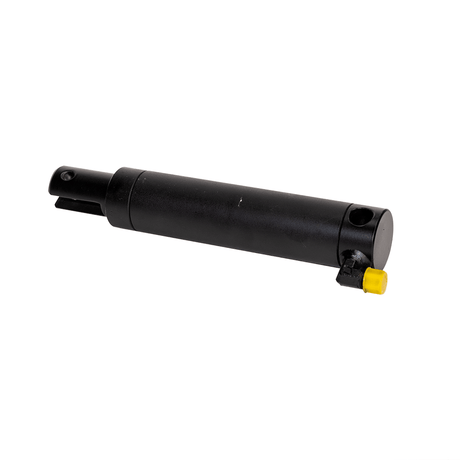

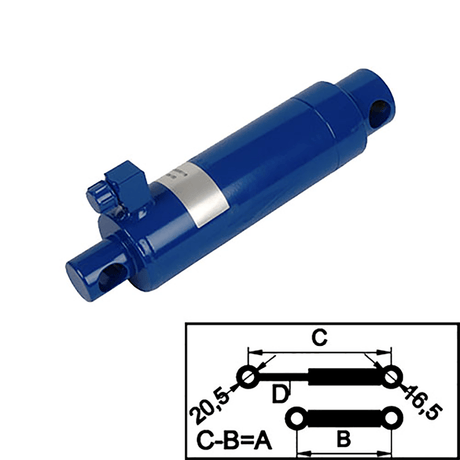

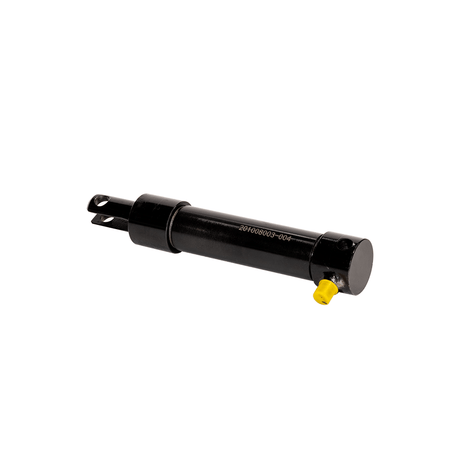

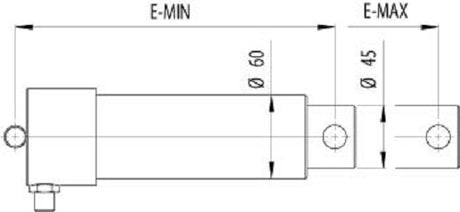

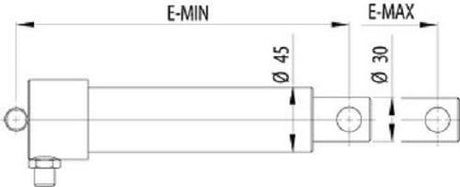

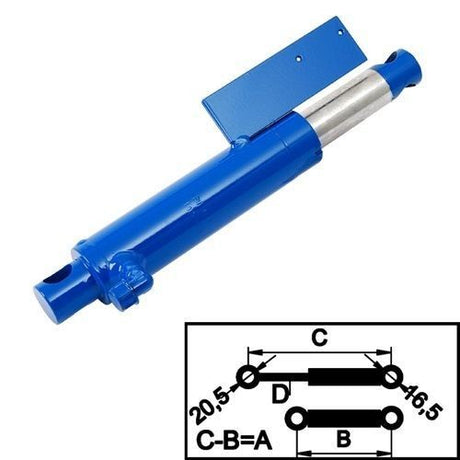

Folding wedge hydraulic cylinder

Cylinder for folding down and positioning the folding wedge lip. Typical stroke lengths are 100 mm .

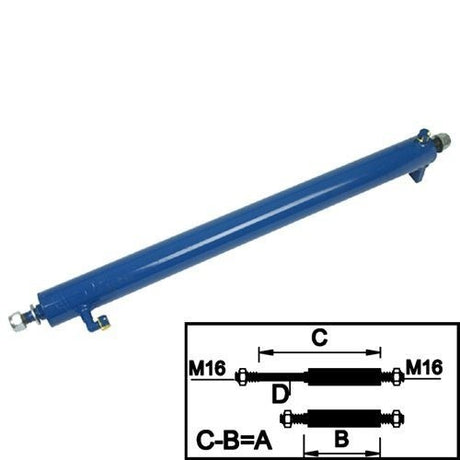

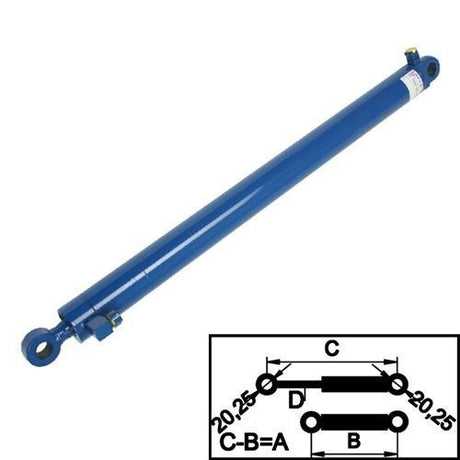

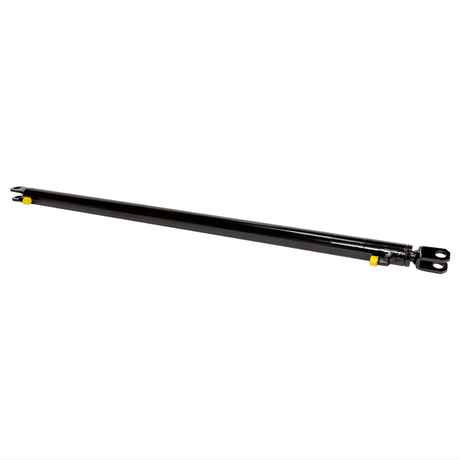

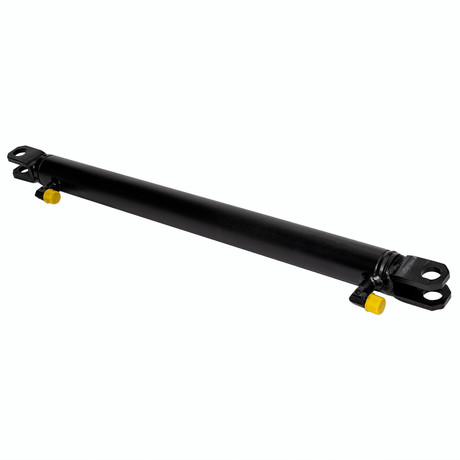

Feed hydraulic cylinder

Cylinder for extending the feed lip, designed for larger stroke lengths such as 500 mm or 1000 mm .

Lifting cylinder

Cylinders for lifting the loading bridge platform, e.g. in combined lifting and extension systems.

Stroke lengths & variants

The hydraulic cylinders included in this category are available in different stroke lengths to cover various ramp and vehicle heights:

  • Folding wedge cylinder: typically 100 mm stroke
  • Feed cylinder: 500 mm or 1000 mm stroke
  • Special lifting cylinders for platform movements

The decisive factors for the selection are stroke dimension, installation length, connection type and the existing hydraulic control.

Compatibility & Systems

The hydraulic cylinders in this collection are compatible with, among others:

  • Crawford
  • Hafa
  • Loading systems (e.g. series 232 / 232M / 233 / 233M)
  • Stertile
  • Other cross-manufacturer ramp systems

Important: For replacement, technical data such as stroke length, mounting points and connection threads are crucial – not just the manufacturer's name.

Selection guide – finding the right hydraulic cylinder

  • Cylinder type: Folding wedge, feed or stroke
  • Stroke length: e.g. B. 100mm / 500mm / 1000mm
  • Installation dimensions: Length retracted/extended
  • Connection type: Threaded, hose connections
  • Existing system: Replacement or modernization?

Frequently Asked Questions (FAQ)

Can I replace a folding wedge cylinder with a feed cylinder?

No, the two cylinder types have different functions and stroke lengths. The mechanics of the loading bridge determine the appropriate cylinder.

How do I determine the correct stroke length?

The lifting length is determined by the design of the loading bridge. A look at the nameplate or technical data sheet will help.

Are the cylinders suitable for retrofitting?

Yes, many hydraulic cylinders are specifically used as replacement parts for existing ramp systems.

Find the right hydraulic cylinder for your loading ramp

Send us photos, nameplate information or technical data – we will help you choose the right cylinder for your loading technology.

Request consultation & quote
