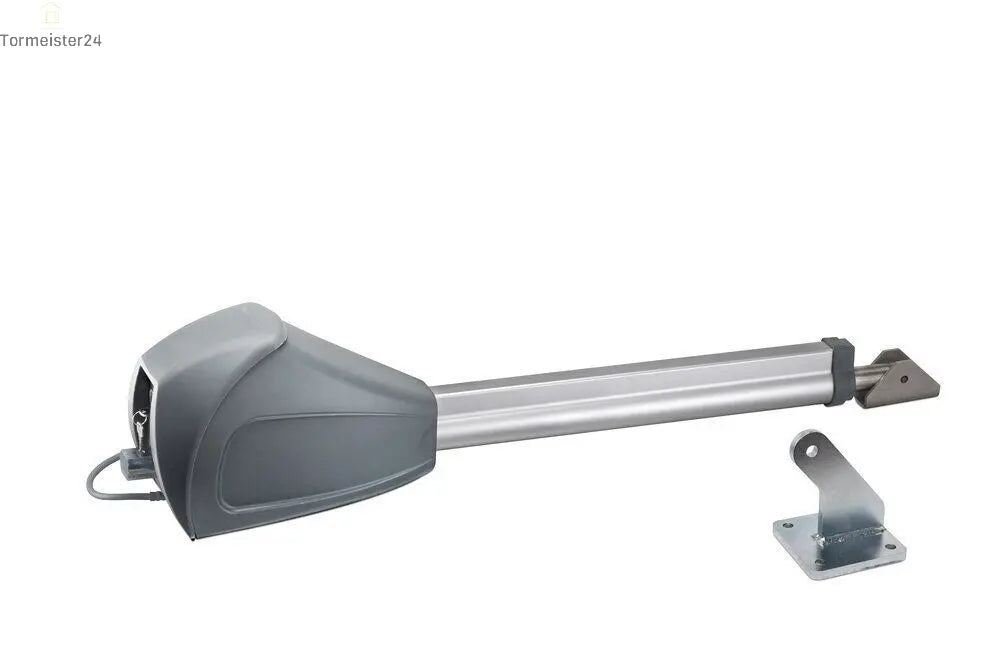

Sommer twist XL swing gate operator – single-leaf up to 7 m / 1,100 kg – including control unit, radio & handheld transmitter

The Sommer twist XL is a powerful swing gate operator for gate leaves up to 7 m wide or 1,100 kg in weight . Ideal for single-leaf, closed, or outward-opening gates with the highest demands for stability, security, and flexibility.

✅ Security at the highest level

• Self-locking up to 5 m gate width – no electric lock required
• Electronically controlled force measurement via DPS (Dynamic Power System)
• Patented SOMMER braking system – withstands loads up to 3 tons
• Manual emergency release in any position (e.g. in case of power failure)
• Connections for warning light, light barrier (2-/4-wire) and external consumers (DC 24 V)

⚙️ Comfort & control functions

• Microprocessor control with adjustable speed
• Soft running in ramp shape – gentle on the gate and without loss of power
• Automatic closing after light barrier detection
• Pedestrian door function for individual wing operation
• Adjustable advance warning time & reversing behavior in case of obstacles

🔧 Easy to install & flexible

The twist XL control unit is supplied in an IP65 housing with a plug-in FM 868.8 MHz radio receiver – alternatively, the larger twist XXL control unit (IP67) with touch protection and main switch is also available.

✅ Scope of delivery (example configuration)

• 1× twist XL drive unit (item no. 3280V000)

Control not included

🔄 Compatibility & Expandability

• Universal for DIN left & right
• 1- & 2-wing operation possible
• Mixed operation with twist 200 E/EL and twist 350 via conversion kit “twist XS”

💡 Also for special requirements

Whether closed panels, heavy leaves or gates with outward opening – twist XL offers a flexible solution with maximum operational reliability, even under extreme conditions.

Swing gate operator twist XL – for particularly large and heavy gates

Assembly instructions Click here to go to the assembly instructions

Checklist for swing gate operators Click here to start the download
