Sommer twist UG underground swing gate operator, 2-leaf, up to 3.5 m / 600 kg | Tormeister24

The Sommer twist UG set is the ideal solution for double-leaf swing gates with a leaf width of up to 3.5 m and a weight of 600 kg per leaf . Thanks to its underfloor installation, the drive system remains completely invisible – perfect for high-quality gate systems with aesthetic appeal.

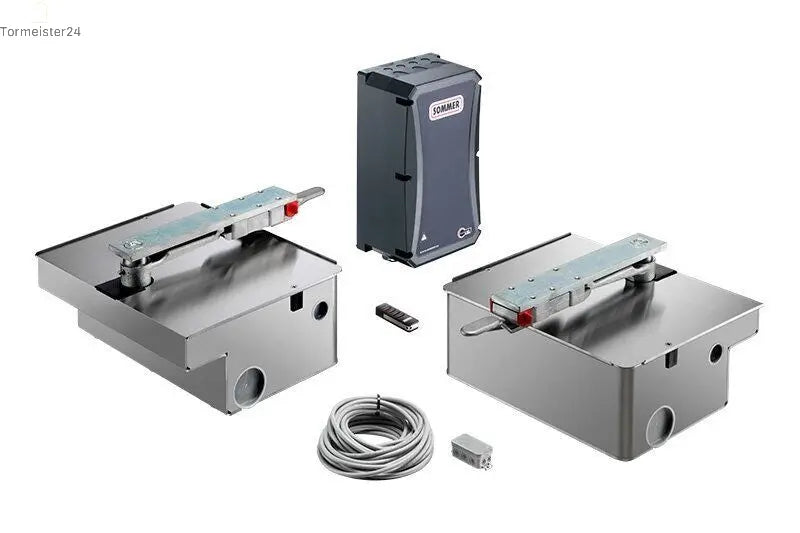

✅ Scope of delivery

• 2× underground swing gate operator made of stainless steel (DIN left & DIN right)
• 1× twist UG control unit in IP65 housing (350 × 200 × 140 mm)
• 1× Radio receiver FM 868.95 MHz (SOMloq2)
• 1× 4-command handheld transmitter Pearl Vibe with vibration feedback
• 1× connection cable set, 12 m length

🛡️ Maximum security through intelligent technology

• Movement force monitoring according to EN 12453
• Electronically adjusted & learning force values
• Bidirectional SOMloq2 radio system with 128-bit encryption
• Mechanical emergency release in case of power failure

🚗 Comfort features for everyday life & safety

• Pedestrian door function for only one open wing
• Automatic closing after light barrier detection
• Warning light function when maintenance is due

🔧 Expandable & flexible retrofittable

Thanks to the modular system, easy expansion is possible at any time:

• Slot for 8k2 safety contact strip available
• Multifunctional relay for e.g. yard lighting
• Optional battery pack for emergency operation in case of power failure

🌱 Sustainability & Longevity

With a standby consumption of less than 0.5 W, the operator generates only approximately €1.80 in annual electricity costs . Soft-running "open" and "close" protects the door and operator, extends their service life, and reduces noise.

🏘️ Suitable for private & commercial driveways

With a duty cycle of 40%, the drive is also suitable for apartment buildings and commercial facilities.

🔩 Robust materials & sophisticated design

Housing made of stainless steel, rust-proof aluminum , or optionally hot-dip galvanized steel . A side cable outlet protects against abrasion damage and ensures an elegant appearance and easy installation.

twist UG underground swing gate operator – 2-leaf, powerful & invisible

Assembly instructions Click here to go to the assembly instructions

Checklist for swing gate operators Click here to start the download
