Sectional doors: rollers, roller holders & hinges in comparison

Overview & Goals

Sectional doors run safely and quietly when the ball-bearing rollers , roller brackets , and hinges fit together. Here you'll find all the items we've handed over – sorted by manufacturer – with their application, installation location, and a link to the shop.

Need a quick recommendation? Use the quick selection or jump directly to the matching combination guide .

Speed ​​dial: What do I need for what?

component	Installation location	Purpose	To the category
Roller (ball bearing)	in the track, on the side of the door leaf	quiet, precise running; load transfer	Ball bearing rollers
Roll holder & side hinge	Side edge of the panels	Height/side adjustment, roller guide	Roll holders & hinges
Center hinge	between the panels	Panel connection, stability, finger protection (depending on model)	Center hinges
Top roller holder / double roller	top panel	clean running in the fall and curve guidance	Top roll holder

Hörmann (compatible components)

Roll holders, hinges & accessories

component	Installation location / Note	link
Center hinge	Panel connection	Product · with leveling plate
Reinforcement angle side hinge (R)	right side, stabilization	product
Side hinge / lower part / complete	Side edge, various widths (e.g. 52 mm)	Side hinge · Lower part 52 mm · complete 52 mm
Roll holder/stand	Guide & adjustment of the roller	Roller block type 6 · Galvanized roller holder · Type S · above · Fastening L · Fastening R · BR40 · top (Universal)
Top roller holder / stop bracket	top panel, lintel area	Top roll holder L · Top roller holder R · TRH-001 · for 12 mm shaft · Stop bracket type N

Casters & double casters

variant	Typical dimensions	link
Roller (short) 11 mm / 2"	ball bearing, short	product
Short roller 14 mm (suitable)	short shaft	product
Short roller	various dimensions	product
Double roller BR60	Left Right	left · right
Long / short roller (12 mm shaft)	suitable for Hörmann	long · short

Crawford / ASSA ABLOY

Roll holders & hinges

component	Notice	link
Side hinge (not adjustable)	classic	product
Side hinge for straight rails	Special tour	product
Roll holder (single/double/with rack)	different versions	simply · double · with frame
Side hinge with roller holder	Combined component	product
ConDoor side hinge complete (Crawford/ASSA)	Replacement/alternative	product
Center hinge (compatible)	Panel connection	product

Casters & top roller holders

component	Notice	link
Top roll holder 250 kg (large/small)	heavy version	large · small
Tandem roller	two wheels, smooth running	product
Roller 11 mm / 2" short	Replacement (not original)	product
Roller (suitable for Crawford garage doors)	Compatible	product

ConDoor (incl. fingersafe series & sets)

Side hinges / finger safe (ST3V, ST9V, ST1V)

component	Compatibility / Note	link
Side hinge FS 166×60 mm (ST3V)	Finger protection	product
Side hinge FS 159×60 mm (EPCO/Tecsedo ST9V, Notch)	EPCO/Tecsedo compatible	product
Side hinge FS 159×60 mm (EPCO/Tecsedo)	Set / Alternative	product
KDC finger safe ST1V 166×60 mm	for ST1V panels	product
CS45 side hinge (non‑fingersafe)	classic	product
Side hinge complete (Hörmann compatible)	Replacement/alternative	product
Side hinge set (EPCO ST9V)	Fingersafe set	product

Casters (ConDoor / LS series) & accessories

variant	Notice	link
Tandem scooter short / long (11 mm shaft)	smooth running, higher load capacity	short · long
Tandem scooter short (LS200/LS250)	not adjustable	product
Bottom Bracket Roller (LS200/LS250)	right left	right · left
Long tandem roller (LS200/LS250/Sprint)	not adjustable	product

Novoferm

component	Notice	link
Roller holder (suitable for Novoferm T45 panels)	T45 panels	product
Side hinge	Panel connection	product

Metecno

component	Notice	link
Metecno roll holder	side panel	product
ConDoor Fingersafe side hinge 161×65 mm	for Metecno panels	product

Kingspan

component	Notice	link
Center hinge finger guard (ST1V)	Finger safe	product

EPCO / Tecsedo / Italpanelli

component	Notice	link
ConDoor side hinge FS 159×60 mm	EPCO/Tecsedo ST9V	product
ConDoor side hinge FS (Notch) 159×60 mm	EPCO ST9V Notch	product
Simple fitting finger protection (per section)	EPCO ST9V / Italpanelli	product
Fingersafe Set (EPCO ST9V)	Complete set	product

IDD (for Hörmann)

Roll holder / roll block / top roll holder

component	Notice	link
roller block	Alternative/replacement	product
Roller holder	side panel	product
Top roll holder	above	product
Center hinge (industrial)	Panel connection	product

Casters (IDD compatible)

variant	Notice	link
Roller (IDD/Hörmann)	compatible	product

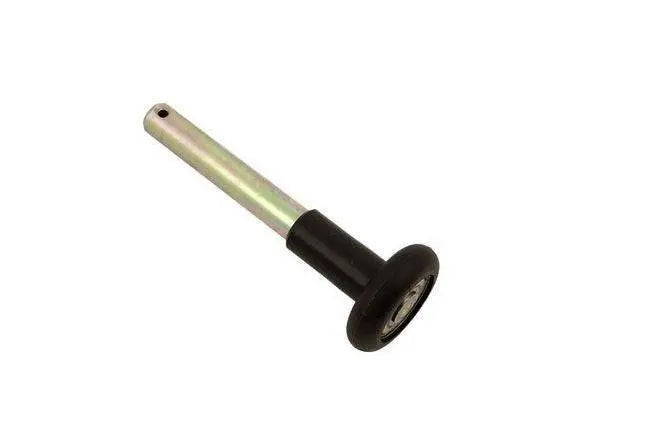

Roller 11 mm, 2", pin hole	ball bearing	product
Roller with eccentric disc (replica)	adjustable	product

Universal / neutral

Roll holders, hinges & accessories (neutral)

component	Type / Use	link
Double roll holders	laterally	product
Panel coupling plate	Panel connection	product
Side hinge finger guard ST3V	Finger safe	product
Side hinge completely traditional (ST3/ST7/T40)	classic	product
Traditional side hinge (ST3/ST7/T40/ST3E)	classic	product
Traditional center hinge (ST3/ST7/T40)	Panel connection	product
Center hinge finger guard ST3V / ST9V	Finger safe / wicket door variant	ST3V · ST9V · ST9V (Var.) · Wicket door ST3V · simple fitting ST3V · double fitting ST3V · double fitting ST9V
Upper roller holder BR60	Fall area	product
Roll holder (right with rolls / short 11 mm / heavy)	different variants	right with wheels · short 11 mm · difficult
Adjustable top roller holder 12 mm (ST‑60 mm)	LS200/LS250	product
Top roller holder (up to 64 mm) L/R	upper panel	top left · top right

Casters (neutral/generic)

variant	Dimensions / Note	link
Long roller (heavy / 11 mm / 3")	ball bearing	difficult · 11 mm · 3 inches
Short roller (10 mm / 11 mm / heavy)	short shaft	10 mm · 11 mm · difficult
11 mm roller short (neutral)	Standard size	product

Combinations & installation locations

Where is each component located?

• Rollers run in the side rails. Dimensions (e.g., 11 mm shaft, 2" wheel) must match the bracket and rail.
• Roller holders are located on the side of the panel and guide the rollers; top roller holders or double rollers are used at the top (lintel/arch).
• Side hinges connect the panel and side edge; Fingersafe models (ST3V/ST9V/ST1V) protect against pinch points.
• Central hinges connect the panels; traditional and finger-protection versions are available.

Typical combinations (practical)

• Hörmann door, standard guide: 11 mm/2" short roller + roller holder (galvanized or type S) + side hinge (52 mm) + center hinge + top roller holder L/R ( see Hörmann table ).
• Crawford/ASSA ABLOY: Side hinge (with roller holder if necessary) + tandem roller or roller 11 mm 2" + top roller holder 250 kg ( Crawford table ).
• Finger protection panels (ST3V/ST9V/ST1V): ConDoor Fingersafe side hinges (depending on model) + matching center hinges (ST3V/ST9V) + tandem or single rollers ( ConDoor ).
• Panel-specific: Novoferm T45 → special roller holder + manufacturer-specific side hinge ( Novoferm ); Metecno/Kingspan → respective finger-safe hinge solutions ( Metecno , Kingspan ).

Tip: When combining components from different brands, check the wheel diameter, shaft diameter/length, hole spacing , and panel/profile system . If you're unsure, let us know – we'll match the parts exactly.

FAQ – Rollers, brackets & hinges on sectional doors

What is the difference between a side hinge and a center hinge?
Side hinges are located on the door leaf side and guide the rollers. Center hinges connect the panels together in the middle.

When do I need a finger-safe hinge?
For modern finger protection panels (e.g., ST3V/ST9V/ST1V). These hinges prevent pinch points between the panels.

How do I recognize the right caster?
Important factors include shaft diameter (e.g. 10/11/12 mm), shaft length/short/long, wheel diameter (inches), and whether a tandem is required.

Can I combine across manufacturers?
Yes, if the dimensions/hole patterns match. Examples: ConDoor fingerprint safe with EPCO/Tecsedo panels; IDD holder as a replacement for Hörmann.

What are the benefits of a double roller/top roller holder?
Stable running in the lintel area, quieter opening/closing – useful for high gates or tight radii.

Is there a “quick” selection guide?
Yes – see quick selection and combination examples . If there are any discrepancies, please send us a photo/measurements.
