SKU: SG2314L-1700

Torsion spring 51×6.25×1700 mm | LHW | 1" shaft 25.4 mm | Powder-coated grey | 2P

Name: Torsion spring 51×6.25×1700 mm | LHW | 1" shaft 25.4 mm | Powder-coated grey | 2P
Brand: Schweighöfer Tore
SKU: SG2314L-1700
Price: 99.5 EUR
Availability: InStock

€99,50

Tax included Shipping calculated at checkout.

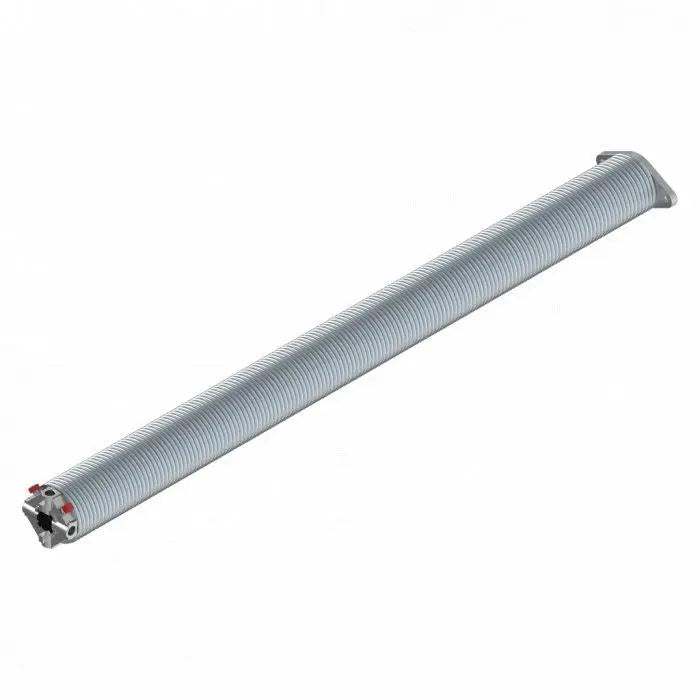

Torsion spring 51×6.25×1700 mm LHW | 1" shaft 25.4 mm | Powder-coated grey | 2P

This LHW torsion spring, measuring 51 x 6.25 x 1700 mm, is specifically designed for garage doors with a 1" (25.4 mm) shaft. Powder-coated, heat-treated, and waxed on the inside, it ensures long-lasting function and reliable performance.

🔧 Technical specifications

Article No.:
SG2314L-1700

Area of application:
garage

Length:
1700 mm

Inner diameter:
51 mm

Wire thickness:
6.25 mm

Winding direction:
LHW (left wound)

Wave:
1" (25.4 mm)

Surface:
Powder-coated, wax film inside

Treatment:
Oven-relieved, blasted, thermally refined

Color:
Gray

Pre-assembly:
2 spring heads (2P)

Weight:
2.55 kg

Unit:
Piece

💪 Advantages & Features

LHW spring for garage doors with 1" shaft (25.4 mm)
Waxed inside & powder-coated outside – optimal corrosion protection
Thermally treated for high stability and lifespan
Pre-assembled 2P spring heads facilitate replacement
Uniform spring force for smooth and safe gate operation

⚙️ Application & Assembly

The left-handed LHW torsion spring is installed on the right-hand inside of the door (in double spring systems). It precisely balances the door leaf weight and ensures smooth, low-wear operation. Pre-assembly with 2P spring heads significantly reduces installation time.

Safety note: Torsion springs are under high tension. Installation should only be carried out using tensioning tools (Ø 12.7 mm) and personal protective equipment (PPE). Disconnect the drive from the power supply before starting. Professional installation is recommended.

🏁 Practical example

For garages with frequent door operation, this LHW spring ensures smooth operation and even force distribution. Powder coating and a wax film guarantee optimal corrosion protection even under changing environmental conditions.

🔗 Relevant categories & accessories

❓ FAQ

What does LHW mean?

LHW stands for "Left Hand Wound" – wound on the left. This spring is mounted on the right side (viewed from the inside) in double spring systems.

How long does a torsion spring last?

With correct installation and regular maintenance, it achieves tens of thousands of opening cycles.

How do I find the right replacement spring?

Crucial dimensions include length, wire thickness, inner diameter, and winding direction. These must match the existing spring.

🛒 Order your torsion spring now

Order the torsion spring 51×6.25×1700 mm (LHW) for 1" shaft 25.4 mm – pre-assembled, powder-coated and durable in professional quality.
