Emergency release for garage doors – what to do in case of a power outage?
Modern garage doors are convenient: just press a button on the remote control or the smart home module – and the door opens. But what if the power goes out or the technology fails? The emergency release makes your gate operable at any time. In this guide, you'll learn how it works, what to look out for, and how to prepare for emergencies.
1) Why an emergency release is essential
A garage door is heavy—often more than 100 kilos. The operator does all the work. If the power goes out, Nothing moves anymore. Without an emergency release, you'll literally be locked in – or your car will be in the garage. This is precisely why the emergency release is mandatory for modern gate operators: it makes the gate manually operable in an emergency.
2) How does the emergency release work?
The emergency release consists of a small mechanism with a cable pull. If you pull on it, the drive is decoupled from the gate – the gate can move freely. Important: Thanks to the spring system The gate is balanced and can be opened and closed with little force.
3) Installation & position of the emergency release
Typically, the emergency release is mounted directly on the drive head. A cable runs downwards from there. For garages without a side entrance, an external emergency release is also installed: a lock in the door surface, which gives you access to the cable pull from the outside.
4) How to operate the emergency release step by step
- Release the safety device: Pull firmly on the red handle or rope.
- Lift the gate manually: Thanks to springs, little force is required.
- After power returns: re-engage the drive, put the handle back in place.
Tip: Read the manual for your drive – it explains the exact handling.
5) Emergency release from outside – if the garage has no side entrance

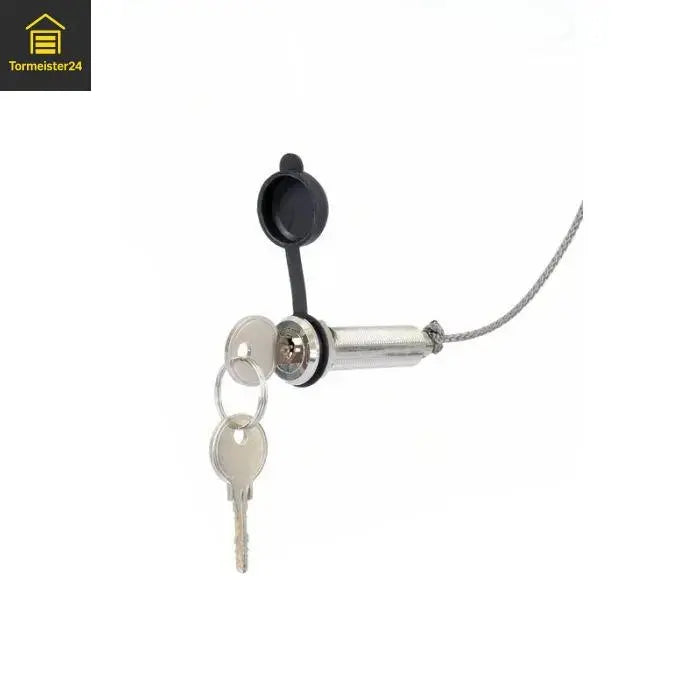

If your garage does not have a second entrance, an external emergency release is mandatory. It consists of a lock with a Bowden cable. Turn the key, pull the cable, and the drive is decoupled. Without this solution, the gate would not be accessible from the outside in the event of a power failure.
6) Security: How do you prevent misuse?
Emergency releases are secured with locking cylinders, ensuring only authorized personnel have access. Modern systems use protected cylinders that cannot be easily manipulated. Especially with garage doors This is important because they provide direct access to the house.
7) Maintenance & care of the emergency release
An emergency release is rarely needed – but it must work in an emergency. Therefore, test the mechanism at least once a year. Check that the cable runs smoothly and that the clutch disengages reliably. Clean and lightly lubricate if necessary.
8) Spare parts & retrofitting
Emergency releases are also available as retrofit kits. Defective ropes or handles can be replaced. In the Tormeister24 shop you can find compatible accessories for many manufacturers. Our technicians in the Rhine-Main area also carry out retrofitting on-site.
9) Products & Categories at Tormeister24
10) Conclusion – small device, big impact
The emergency release is an inconspicuous but crucial component. It ensures that your gate remains safely operable even in the event of a power failure. Our tip: Check the functionality regularly and find out about upgrades. So you are prepared for every situation – whether with a modern Sectional door or an industrial facility.
