The hard truth

A sectional garage door isn't rocket science. But it is a system. And if a roller is running roughly, it has consequences: The rail suffers abrasion, roller holders become misaligned, hinges develop play – and the drive suddenly needs to be replaced. to compensate for what the mechanics should actually do cleanly.

• More noises (squeaking, cracking, grinding)
• More resistance → the drive is unnecessarily strained
• Misalignment → Seals chafe, gate is difficult to open
• Higher risk of consequential damage to fittings & guides

What you'll get out of doing it right

Good, suitable rollers + a properly adjusted roller holder = a gate that looks "like new" again. Not exaggerated. Simply mechanically logical.

• ✅ Quiet operation (finally, a garage without a horror soundtrack)
• ✅ Consistent guidance in the rail
• ✅ Less wear and tear on hinges and brackets
• ✅ Longer lifespan of the entire gate system

Tip: While you're at it, think in pairs (left/right) and not "just a quick roll".

Quick check without specialized knowledge

1. Close the gate. Look from the inside: Is the air flowing smoothly or is there a visible draft?
2. Check the rail: remove all clumps of dirt, metal shavings, and lumps of grease.
3. Spin the wheels (if accessible): Does it run freely or does it scrape/jerk?
4. Check the roller holder: is it firmly attached or does it have play/misalignment?
5. Inspect the hinges: cracks, bent tabs, worn holes?

If during your check you notice: "Oh, there's a real tension/rope/spring issue" → please don't try to fix it. More on that later.

Quick direction according to symptom

• Squeaking/rolling noise: often due to a dry/defective bearing or dirty rail.
• Grinding in the curve: often the top roller holder is incorrectly adjusted.
• Cracking/metal "working": often roller holder/hinges loose or worn out
• The goal is crooked: the rope/console/spring may be involved – caution!

If you want to go straight to the right parts:
View ball-bearing casters
View roll holders & hinges

Who does what?

• Running track: the track. If the track is dirty or bent, even the best roller will only help you to a limited extent.
• Running roller: reduces friction, keeps the running smooth and prevents jamming.
• Roll holder: positions the roll, bears the load, defines the pressure and guidance.
• Hinges: connect the sections, keep the geometry stable and transmit forces.

Rule of thumb: The roller makes the barrel smooth. The holder makes the barrel run correctly. The hinge holds everything together.

Why this counts as a system

A new roller on a worn-out roller holder is like new tires on a crooked rim. It's quick – but not fun. That's why we always look at: roller + holder + hinge + rail.

• Loose screws → noise and play
• Incorrect dimensions → roller jams or has too much play
• Incorrect top pressure → gate slows down in the curve

Plain bearings (short and honest)

Plain bearings work. Period. But they are more sensitive to dirt and require clean guides. and become louder more quickly with heavy use.

• ✅ often cheaper
• ❌ More likely noise development due to wear
• ❌ Less "soft" in action when it gets dirty

Ball-bearing wheels (the upgrade that makes sense)

Ball bearings significantly reduce friction, run more smoothly and last longer in many applications – especially with frequent opening/closing. If you want peace and quiet and don't want to have to do it every two years: that's usually the right direction.

• ✅ quiet operation
• ✅ Less friction = less stress on the system
• ✅ Ideal for heavy or frequently used goals

Go directly to the roles: Find suitable wheels here

single roller

The classic choice for many sectional doors. If the dimensions and bearings are correct, the door will run smoothly and quietly. Important: Don't just take "any" one – but one that matches the rail, shaft and fitting.

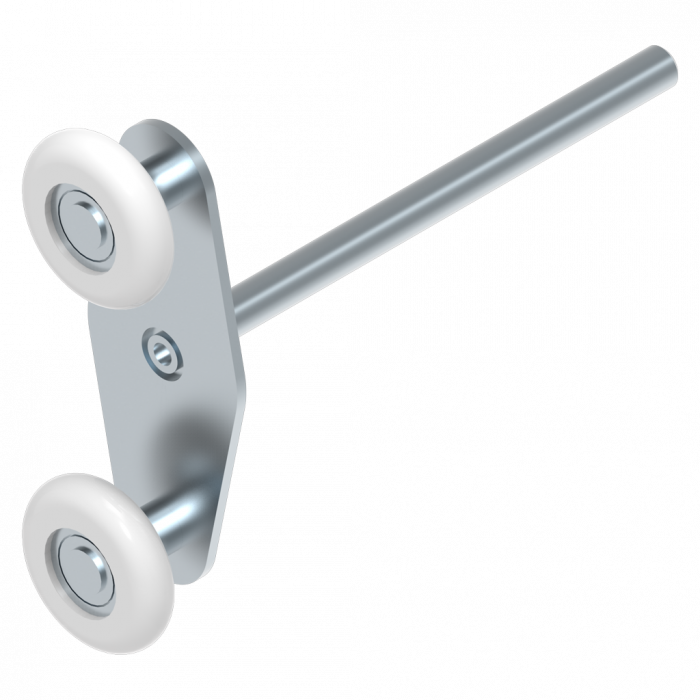

Tandem/double roller

For increased load capacity and smooth operation with heavy, wide or heavily used gates. Two rollers distribute the forces better – this is often invaluable, especially in commercial settings.

Top/Double roller (top)

At the top of the curve, the attitude is crucial. It's not just about "running," but about... "Runs smoothly, quietly, and without braking." Top reel seat + pressure = key point.

Eccentric/special rollers

Some systems use eccentrics, spacers, or special guides. This isn't something you order "on a hunch." What matters is: measuring precisely, comparing precisely – or having it checked briefly.

Side roller holders (load carriers)

Lateral roller brackets support the load and guide the gate in the track. If there's any play involved, the goal will never be "nice" again – no matter how new the roller is.

• Check: Are the screws tight? Are the hole patterns worn?
• Check: Is the bracket bent? Is the roller crooked?
• Check: Think in pairs (left/right)

Top reel holder (the “curve rule”)

The top roller holder guides the gate from the vertical to the horizontal track. And this is precisely where the problem often arises: too much pressure = gate slows down, too little pressure = gate rattles.

• Pressure applied "firmly", but not "tightly"
• The seal must be in contact, but not restrict movement.
• After adjustment: Test drive (open/close) + check for noises

center hinge

Connects the panels. Keeps the geometry stable. When center hinges develop play, the gate often runs unevenly – especially under load.

End hinge / side hinge

The side hinge is often the unit on which the roll holder or the roll sits. This is not just a connection – it is leadership and a load point.

What goes wrong with "it's fine"

• Hole pattern doesn't match → Holder sits crooked
• Incorrect material thickness → bends, play develops
• Incorrect left/right variation → goal is out of plumb

These signs are quite clear.

• The roller sounds rough, "sandy", and does not rotate freely.
• Visible grooves, flattening, breaks out
• Lateral play in the camp
• The gate jerks at the same spot every time.
• Rail full of abrasion/metal dust (frequent warning sign)

What you should NOT do

• Just smear on "more grease" and hope for the best.
• Only swapping one side ("it'll be fine")
• Stop by forcing it until it works somehow.

If it can only be "persuaded," something is usually wrong. You can't fool mechanics.

Something you, as a technically skilled person, can often do yourself.

• Check the rollers and replace them (if accessible).
• Adjust the roll holder according to the instructions/logic (do not overtighten)
• Clean rail, easy care
• Tighten screws/connections (carefully, not with hatred)

Please don't do this yourself

• Loosen/tension/replace torsion springs
• Hanging ropes around your neck without knowing what you're doing
• Bypassing "safety devices" (light barrier, safety edge, etc.)

Springs are under high tension. There are no second chances. If the topic even remotely resembles springs/ropes: Get in touch briefly – we'll tell you what makes sense.

1) Preparation

1. Close and secure the gate.
2. Drive without power.
3. Clean work area: Remove dirt from the track/surrounding area.
4. Take measurements and photos before you loosen anything.
5. Prepare new parts (and check if left/right fits).

2) Check and remove the old roller

1. Release the locking mechanism (cotter pin/screw depending on the system).
2. Remove the roll and compare directly: diameter, length, shaft diameter.
3. Check the roller holder for wear (hole pattern/play/bending).

If the holder is worn out, a new roller will only do you half the job. In that case, it's better to do it properly: roller + holder.

3) Assign a new role

1. Insert the roller and mount the safety device correctly.
2. The roller must run freely – no jamming, no lateral constraint.
3. If a spacer sleeve is needed: insert it (otherwise it will go wrong).

4) Always think in pairs

Especially with side rollers: swap left and right in pairs to ensure symmetrical movement. Otherwise, it's like wearing a new sneaker and an old clog. It works... but you don't want to live like that.

How you can tell that the top reel seat is incorrectly positioned

• The gate hums/scratches in the curve.
• The gate "brakes" just before it reaches a horizontal position.
• The seal is visibly chafing.
• The gate rattles at the top (insufficient pressure).

Here's how to set it up correctly.

1. Adjust the pressure so that the guide is firm – but the gate is not slowed down.
2. After every minor change: Test drive OPEN/CLOSE.
3. Listen: The goal is "round & smooth", not "maximum firm".
4. If you need force to do this, then the geometry/parts selection is incorrect.

This is fine-tuning. And yes: 2-3 iterations are normal.

Clean the rail instead of "covering it up"

Many people apply polish until it shines – and then wonder why it gets worse. Grease + dust = grinding paste. Therefore: Keep the rail clean, work sparingly.

• Remove dirt and old grease
• Use lubricant sparingly (if necessary at all).
• Check roller movement: free, smooth, without lateral force

Maintenance schedule (realistic)

• Private: 1-2 times per year visual and functional check
• Commercial/high frequency: check more frequently, depending on usage and specifications.
• After every repair: Test safety features

A gate used daily in a commercial setting lives in a different world than a private garage. Treat it accordingly.

A mistake that will become very expensive

"I'll just tighten it, then it won't rub." But it will rub somewhere else – and the drive will suffer. The goal isn't "by force," the goal is "with geometry." If you do it properly, it will hold.

If you're willing to invest 10 minutes to save 10 hours

Measure the rail + shaft + roller + length. Take 3 photos. Then you order the appropriate parts – or we'll let you know shortly. Which combination works? That's the difference between a professional and a botched job.

Before ordering

• Rail dimension (2"/3") noted
• Shaft/shaft diameter noted
• Roll diameter + length noted
• Installation position clear (side/top)
• Photos taken (roll in holder + hole pattern)

During installation

• Gate secured & drive without power
• Left/right are thought of in pairs
• Holder checked for wear
• Top area finely adjusted after test drive

After installation

• Test drive OPEN/CLOSE
• Noises gone or clearly localized
• Safety functions tested
• Rail clean and without grinding marks

If it's your turn anyway: do it properly this time.

• Fastening material (if screws/nuts are old)
• Floor brackets (if the geometry/cable routing at the bottom is unusual)
• Bearing brackets (for systems with torsion shaft)
• Wire ropes (only have them checked if there is a problem with the rope's angle/position)

Comfort & tightness (if you really want it clean)

• Floor profiles & seals
• Gap seals for sectional doors

A quiet run is great. But a tight gate that doesn't draw is the real top class.

Case 1: Private garage – “Door sounds like shopping cart”

The cause was not the drive, but rather rough running rollers and dirt in the track. After replacing the wheels with suitable ball-bearing rollers and cleaning: significantly quieter, smoother running.

Case 2: Workshop – “Gate brakes at the top of the curve”

The reels were okay, but the top reel seat was set too aggressively. Result: The seal chafed, the gate was slowed down, and the drive was stressed. Solution: adjust properly, reduce pressure, test drives – done.

Case 3: Tilt – “One side is hanging”

There was no haphazard tinkering here. First, the cause was identified, then a decision was made: In such cases, the rope/bracket/spring may also be relevant. This is where expertise counts.

If your gate is hanging crooked: report it here briefly

If everything is "normal"

• Measurements + selection: 10–20 minutes
• Role exchange (depending on accessibility): 30–90 minutes
• Setting for top range: 10–30 minutes

That's the difference: with a plan = doable. Without a plan = weekend drama.

When you go pro

• A tilt that looks like a rope/spring issue
• Fittings bent, rail damaged
• Security features unclear/faulty

Then better clean: Contact & Assessment
