The short truth

A sectional door doesn't just "run on its own". It runs because the roller, track, roller holder and hinges work together. If one component malfunctions, the others suffer as well. And that becomes expensive – not because one part is expensive, but because the resulting damage is annoying.

• 🔊 Loud running: squeaking, scratching, humming
• ⚙️ Increased resistance: Drive is under strain
• 📏 Misalignment: Seals are grinding, gate is jammed
• 🔧 Increased wear and tear: Hinges/brackets/rails become “worn out”

What you ultimately want

A gate that runs smoothly, fits snugly, and doesn't feel like a shopping cart with a broken wheel. And that's exactly where suitable rollers (ideally ball-bearing mounted) plus proper adjustment make the biggest difference.

If you want to go directly to the parts:
View ball-bearing casters
View roll holders & hinges

This way you can quickly find the direction

1. Close the gate. Check inside: is it level or is there a visible draft?
2. Inspect the rail: abrasion, clumps of dirt, grease-sand mixture → remove it.
3. Check the roller area: does a roller look "crooked" or squashed?
4. Check the roll holder (if accessible): is it firmly in place or is something loose?
5. Inspect the hinges: cracks, bent tabs, worn holes?

If you notice: "There's a spring/rope/high tension here" → Stop. See the safety chapter for more information.

Symptoms → common cause

• Squeaking/rough noise: Bearing of the roller, track dirty
• Grinding at the top of the curve: Top reel seat adjustment
• Cracking/Play: Roller holder or hinge is loose/worn out
• Gate is difficult to operate: roller is jammed, track is dirty, pressure is too high.
• Gate crooked: may also affect rope/bracket/spring (be careful)

Unsure? Then make it easy on yourself: Contact (measurements + 3 photos are usually sufficient).

rail

The track is the surface. If the track is bent or covered in wear, even the best roller won't run smoothly. Cleaning and visual inspection are mandatory before you blame any parts.

roller

The roller reduces friction and keeps the machine running smoothly. The bearing is the crucial component. Rough bearing = noise + resistance + consequential damage.

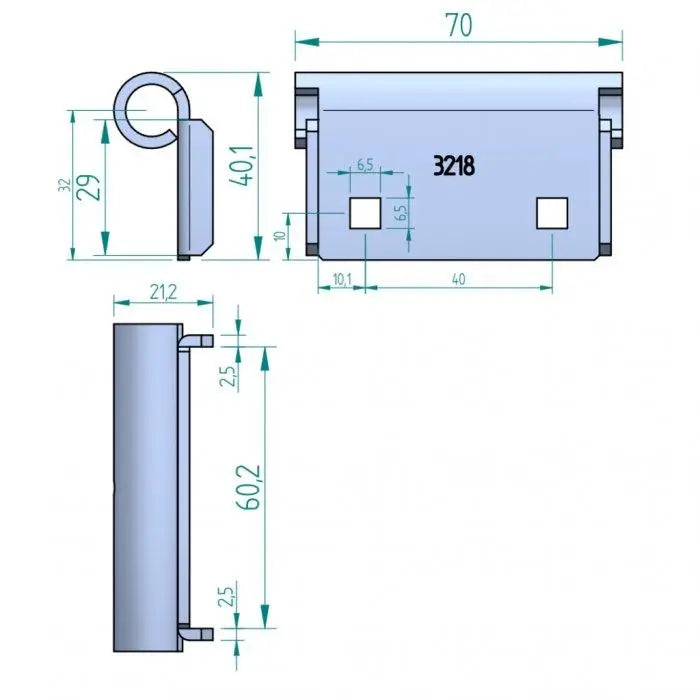

Roll holder

The roll holder positions the roll. If the holder has play, the guide is uneven. Even if the role is brand new, the goal still performs poorly.

hinges

Hinges maintain the geometry of the sections. If they are worn out, the gate will "work". Result: Cracking noises, uneven running, uneven sealing.

Plain bearings (work, but…)

Plain bearings are simple. They work as long as the rail is clean and the load/usage is not brutal. In practice, they become noisy more quickly due to dust and frequent use.

• ✅ simple technique
• ✅ often cheaper
• ❌ becomes rough/loud faster when dirty
• ❌ More friction = more stress on the system

Ball bearings (the sensible choice for quiet operation)

Ball bearings significantly reduce friction. You can notice this: quieter operation, less resistance, less stress on brackets, hinges and drive. If you want your sectional garage door to run smoothly and reliably in the long term: this is usually the right direction.

• ✅ quieter
• ✅ easy running
• ✅ often longer lifespan
• ✅ Especially good for frequent opening/closing

Go directly to suitable roles: Ball-bearing rollers

Nylon/polyamide rollers

Very common with sectional doors. The advantages: quiet operation, good sliding properties, protects the track. The quality of the bearings is important – not just the “white plastic”.

• ✅ quiet
• ✅ Protects rails
• ⚠️ Bearings determine lifespan

Steel rollers / heavy-duty

More suited to industrial/heavy-duty applications. Robust, but not necessarily quieter. If using a steel roller: then the guide must be absolutely correct, otherwise things will quickly go wrong.

• ✅ robust
• ✅ Suitable for high loads
• ⚠️ The guide/rail must fit perfectly.

Seals on the bearing?

Depending on the roller/bearing, there are versions with a seal/cover. This helps against dust and moisture. This can be particularly useful in workshops and commercial settings.

Rail: 2" or 3" - reliably identify

Measure the inside width of the guide rail. That's the fastest way to filter. 2" is common in private garages, 3" is more common in larger/more robust systems – but measuring beats guessing.

If you end up “somewhere between the values”: a photo from the front + the corresponding measurement – ​​then it can be properly classified.

Shaft/shaft: 11/12/14 mm – why this is important

The shaft must fit into the reel seat. If the diameter is wrong, you'll get play or you won't be able to insert the reel at all. Both are bad.

• Too thin → wobbly → runs crooked → noises
• Too big → doesn't fit → frustration

Roll: Diameter & Length – short/long/extra long

The diameter must match the rail. The length depends heavily on the fitting. “Short” is not automatically wrong, “long” is not automatically better – it has to fit the geometry.

Longer versions are often useful, especially for wide gates and heavily used areas.

Standard roller

This is the standard side roller for many sectional doors. If the dimensions, bearings, and brackets are correct, the door will run smoothly and quietly.

Long roller

More “stability” through a longer shaft can make sense depending on the fitting – especially under load/geometry. But: only if it truly fits the system.

Top roll / top area

At the top of the curve, the roller is only half the battle. Here, the top roller holder is crucial: pressure, guidance, and sealing.

Tandem / Double role

Two rollers share the load and often run more smoothly on heavy or heavily used gates. More suitable for demanding applications.

Side roll holders

They bear the burden and define the leadership. If they are relaxed or have too much freedom, the goal becomes unstable – no matter how good the role is.

• Screws tight?
• Is the hole pattern damaged?
• Is the holder bent?
• The roller is at an angle or crooked.

Top reel holder (at the top of the curve)

This is where 80% of the "looping" drama happens. Too much pressure = gate slows down. Too little pressure = rattles. Correctly adjusted: snug, tight, but not binding.

If your top is “humming” or “scratching”: the top area is the first suspect.

center hinge

It connects sections. When it's broken, the gate "works" – you often hear this as a cracking sound and see it in the uneven running.

End/side hinge

The roller holder or the roller itself is often located here. This point serves as both a guide and a load point. Wrong part or incorrect assembly = misaligned running.

Typical mistakes

• Ordered something that looks similar → hole pattern doesn't match
• Left/right confused
• Screws loosened → play develops
• Bent bracket → Roller is crooked

If you want to go universal

“Universal” does not mean “fits everywhere”, but rather “fits with suitable dimensions”. If the rail, shaft and length are compatible, many problems can be solved.

If you have a special system

Then the quickest way is: measurements + photos. Done. No heroic tale. You save time and nerves.

contact

Clear warning signs

• Roll spins rough, “sandy”, wobbly
• The camp has play
• Rail full of abrasion/metal dust
• The gate jerks at the same spot
• The noise is getting worse week by week.

What you can save yourself

• "More grease, then it works" (grease + dust = polishing paste)
• Only swap a single role (asymmetry remains)
• Set it by force (geometry always wins)

You can't persuade mechanics. At best, it will only become more expensive later.

Many can do it themselves

• Check and replace the rollers (if accessible)
• Adjust the roll holder (carefully)
• Clean the rail
• Check/tighten screw connections

What you absolutely shouldn't do "just like that".

• Loosen/tension/replace springs
• Transferring ropes without a plan
• Bypassing security functions

If this sounds like it might involve a spring/rope/tension issue: let me know . This is not a test of courage, this is risk management.

1) Preparation

1. Close and secure the gate (so that nothing moves).
2. Switch off the power to the drive.
3. Take photos and measurements before you solve the problem.
4. Clean the rail, remove any abrasion.

2) Remove the roller

1. Release the locking mechanism (cotter pin/screw depending on the system).
2. Remove the roll and compare it directly (diameter, length, shaft).
3. Check the roller holders: play, cracks, bent?

If the roller holder is worn out: putting in a new roller is only half the battle.

3) Assign a new role

1. Insert the roller and mount the safety device correctly.
2. The roller must run freely, without lateral constraint.
3. Don't "forget" the spacer sleeve/safety (otherwise things will go wrong).

4) Think in pairs

Swap left/right elements in pairs within the same area. Otherwise, you'll have one "new" and one "old" page – and then you'll wonder why. why the goal still behaves strangely.

How to recognize the wrong attitude

• Grinding/humming noise in the curve
• The gate brakes just before it reaches a horizontal position.
• The seal is visibly chafing.
• Rattling at the top (insufficient pressure)

Here's how to set it up effectively.

1. Small change – then test drive. Not “a half turn of the hate bandwagon”.
2. Apply pressure so that the guide is firm, but movement is not restricted.
3. If you need force: then the geometry/parts selection is incorrect.
4. After every change: Check noise, running, and seals.

The goal is "calm & stable", not "maximum firmness".

Keep the rail clean

The biggest mistake: smearing grease on until everything shines. Result: Dust sticks, becomes a grinding paste, bearings suffer, rail suffers.

• Clean the rail (remove abrasion and dirt)
• Check roller rotation (free, smooth)
• Use sparingly (if at all)

Maintenance schedule

• Private: 1-2 times/year visual and functional check
• Commercial: more frequent depending on use
• After repairs: Check safety functions

A gate with 10 cycles a day lives in a different world than one with 2 cycles per week.

The classic: “I’ll tighten it.”

Tightening the screws can temporarily change a noise – but it rarely solves the underlying cause. If you increase the pressure, you often slow the gate down. Then the drive suffers. And in the end, you pay twice.

The professional move

Narrow down the cause, measure correctly, select suitable parts – then it will work. Technology isn't complicated. It's just consistent.

Before ordering

• Rail measured (2"/3")
• Shaft diameter measured
• Roll diameter + length noted
• Installation position clear (side/top)
• Photos taken (roll in holder + rail + hole pattern)

During installation

• Gate secured, drive without power
• Left/right are thought of in pairs
• Brackets/hinges checked
• Top area finely adjusted after test drive

After installation

• Test drive OPEN/CLOSE
• No scratches
• Run smoothly, evenly
• Safety checked

Ball-bearing rollers

If you want peace and quiet: ball bearings are usually the right move. Especially if you run frequently or if you don't want to do it every year.

Category: Casters

Roll holders & hinges

If you have play, cracking or misalignment, this is often the solution – or at least the missing part of the solution.

Category: Roller Holders & Hinges

Consultation / Comparison

Want to be sure it fits? Send us your measurements and photos – we'll give you a clear recommendation.

make contact

Case 1: “Goal squeaks like a shopping cart”

Cause: Rough bearings + rail heavily worn. Solution: Use suitable ball-bearing rollers + clean the rail. Result: significantly quieter, smoother operation.

Case 2: “It's scraping at the top of the curve”

Cause: Top roller holder applies too much pressure. Solution: Fine-tune, test runs, check seal. Result: no more grinding, gate runs more smoothly.

Case 3: “Gate is hanging crooked”

The problem could be mechanical (brackets/hinges) – but it could also involve the rope/console/spring. In such a case: don't try to change anything. Get it sorted out.

contact

If everything is normally accessible

• Measuring + selection: 10–20 minutes
• Role reversal: 30–90 minutes (depending on the goal)
• Set to top range: 10–30 minutes

With a plan, it's a smooth process. Without a plan, it'll be a chaotic weekend.

When you should hire a professional

• Tilt with suspected cable/spring issue
• Rail damaged/bent
• Safety features faulty

Then it's better to go straight to clean: Contact
