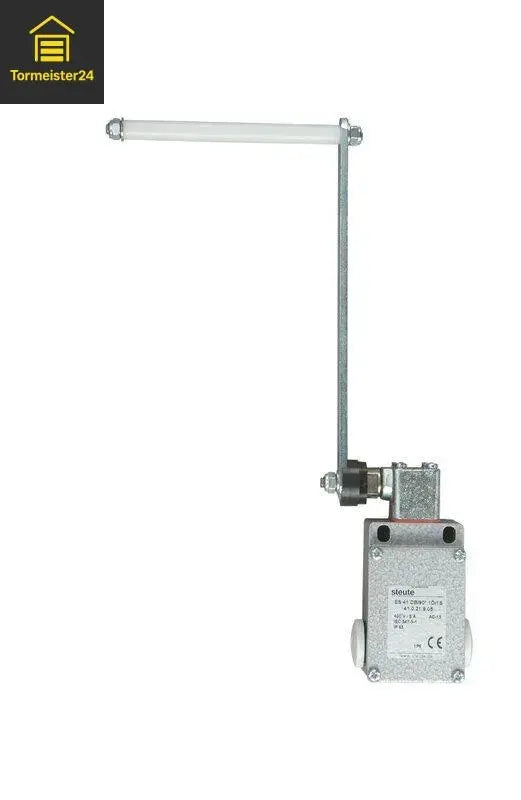

Slack rope switch for gates & industrial doors – Safety for rope drives

Slack rope switches are essential safety devices in rope-operated gate systems. They monitor the tension of the ropes and ensure that the gate control system stops immediately if a rope sags or breaks. This reliably protects people, vehicles, and the gate system itself. In this 10,000-word technical article, you'll learn everything about the functionality, advantages, areas of application, standards, installation, maintenance, and purchasing advice for slack rope switches – and why they are indispensable, especially in industrial applications.

What is a slack rope switch?

A slack rope switch is a safety switch that is installed on the rope drives of gates. Its purpose is to continuously monitor the rope tension. As soon as the rope sags, becomes loose, or breaks, the switch is triggered, and the gate control system shuts down the drive . This prevents dangerous situations such as:

• Rope break during operation,
• Derailment of the cable drum,
• sudden fall or tilt of the gate

This is an essential safety measure, especially for large, heavy industrial doors.

How a slack rope switch works

The functionality is technically simple but highly effective:

1. The rope runs over a pulley that is connected to the slack rope switch.
2. As long as the cable is taut, the switch remains in the rest position.
3. If the rope is relieved of load, sags or breaks, the pulley tilts.
4. The switch is triggered and sends a signal to the gate control.
5. The control immediately stops the door movement and prevents damage or accidents.

A slack rope switch is a kind of “early warning system” that reacts immediately if the rope tension is not correct.

Advantages of slack rope switches

The advantages are manifold and make the slack rope switch an indispensable component of every secure gate system:

• Rope break protection: immediate shutdown prevents serious damage.
• Personal safety: no danger from falling gate segments.
• Longer service life: timely shutdown protects the drive from overload.
• Mandatory in industry: prescribed by standards & DGUV.
• Compact design: easy integration into existing gate systems.

Areas of application

Slack rope switches are used in all gate systems that operate with a rope drive:

• Roller doors: Ropes guide the door leaf – slack rope switches ensure operation.
• Sectional doors: mandatory, especially for large industrial doors.
• Sliding gates: when cable drives are used.
• Loading ramps: Combination with ramp controls for maximum safety.
• Production and warehouse facilities: wherever heavy doors are used.

Types of slack rope switches

There are different types that are used depending on the application:

• Mechanical slack rope switches: trigger purely mechanically.
• Electrical slack rope switches: also send a signal to the control system.
• Combined safety switches: e.g. slack rope switches with integrated limit switches.

Technology & Standards

Slack rope switches are subject to strict regulations:

• EN 12453: Safety of power-operated doors and gates.
• EN 13241: Industrial doors – product standard.
• DGUV regulations: annual inspections are mandatory in Germany.

Operation without a functioning slack rope safety device would not comply with standards and would be highly risky.

Integration into gate controls

Slack rope switches can be easily integrated into existing control systems. Typical systems include:

• Marantec industrial door controls (CS 320, CBX series).
• Controls from Hörmann, Novoferm or ITW.
• Expansion modules via relays or bus systems.

Installation & Assembly

The installation takes place in several steps:

1. Attach the switch to the pulley or directly to the rope.
2. Wiring with the gate control.
3. Fine adjustment of the release force.
4. Test run: Relieve the rope – the gate must stop immediately.

Maintenance & Operation

To ensure that slack rope switches work reliably, regular maintenance is mandatory:

• Check rope tension: even tension on both sides.
• Functional testing: Test runs as part of the DGUV test.
• Cleaning: Keep free of dust and dirt.
• Replacement: Replace immediately if damaged or worn.

Slack rope switch at Tormeister24

In the Tormeister24 range you will find tested slack rope switches for:

• Industrial doors of all types (sectional, rolling & sliding doors).
• Combined ramp and gate systems.
• Compatibility with Marantec, High-Line, Select-Line & Pro-Line.
• Accessories & spare parts for easy retrofitting.

Buying advice – which slack rope switch is suitable?

The selection depends on:

• Door type: roller door, sectional door or sliding door.
• Drive: rope drive or chain hoist.
• Environment: dust, humidity, temperature.
• Control: Compatibility with existing systems.

Future of security technology

Slack rope switches are evolving towards intelligent sensors :

• Integration into IoT systems (remote monitoring).
• Predictive Maintenance.
• Combination with AI-supported controls.

Conclusion – small component, big impact

Slack rope switches are inconspicuous yet indispensable. They protect people, vehicles, and equipment from dangerous damage. Without them, the safe operation of rope-operated gates would be impossible. At Tormeister24, you'll find tested slack rope switches for every application—reliable, durable, and compatible with all common industrial gate control systems.
